Question: An engine operates on the reversible cycle as shown in the figure. What The work output from the engine ( in ki / cycle )

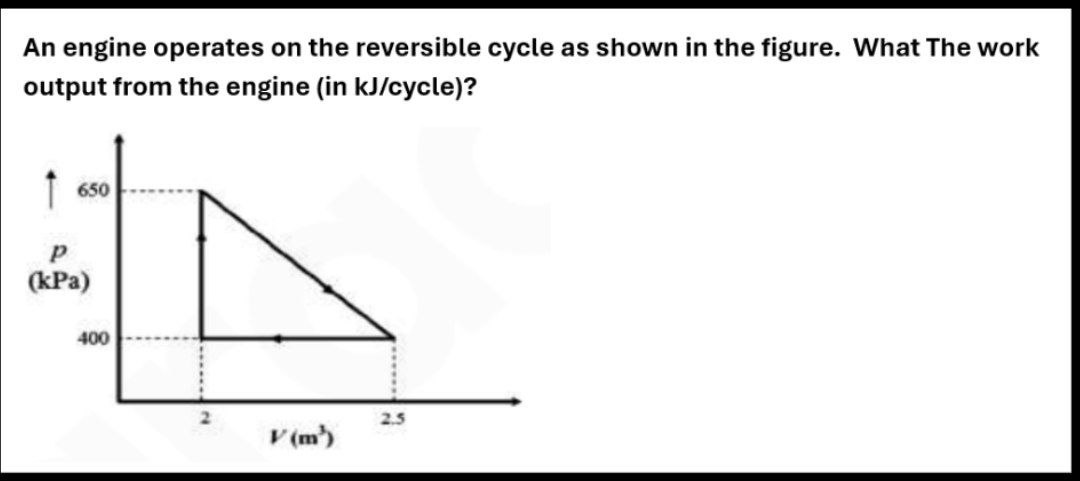

An engine operates on the reversible cycle as shown in the figure. What The work
output from the engine (in ki/cycle)?
An engine operates on the reversible cycle as

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
