Question: An inductor having inductance ( L ) and a capacitor having capacitance ( C ) are connected in series. The current

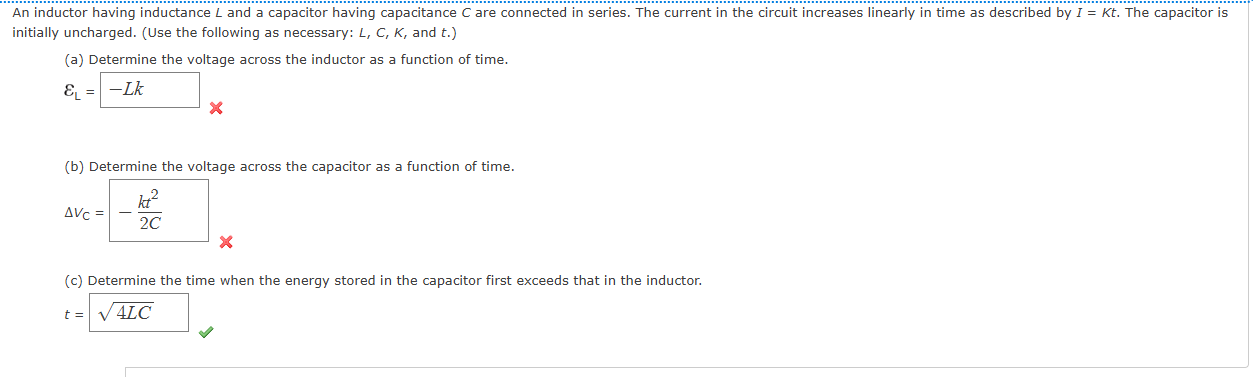

An inductor having inductance L and a capacitor having capacitance C are connected in series. The current in the circuit increases linearly in time as described by IK t The capacitor is initially uncharged. Use the following as necessary: L C K and t
a Determine the voltage across the inductor as a function of time.
varepsilonmathrmL
b Determine the voltage across the capacitor as a function of time.
Delta VmathrmC
c Determine the time when the energy stored in the capacitor first exceeds that in the inductor.
t
