Question: An instrument is set over point A with a 5 . 4 3 f t . H . I. A vertical angle of

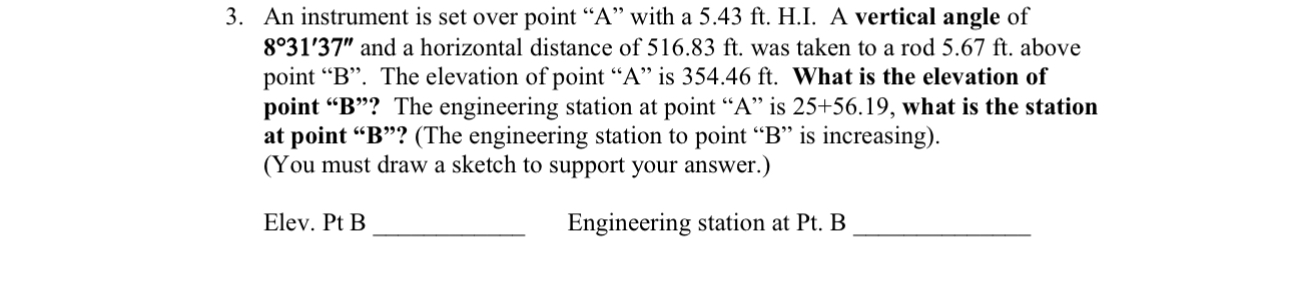

An instrument is set over point "A" with a 5.43ft. H.I. A vertical angle of 831'37'' and a horizontal distance of 516.83ft. was taken to a rod 5.67ft. above point "B". The elevation of point "A" is 354.46ft. What is the elevation of point "B"? The engineering station at point "A" is 25+56.19, what is the station at point "B"?(The engineering station to point "B" is increasing).
(You must draw a sketch to support your answer.)
Elev. Pt B
Engineering station at Pt. B .
An instrument is set over point " A " with a 5 .
