Analyse the structure using the qualitative analysis.

Students are required to submit a report to Canvas.

Note: The report should include both the worked solution and the answers to each question, and your student number at the bottom of each page

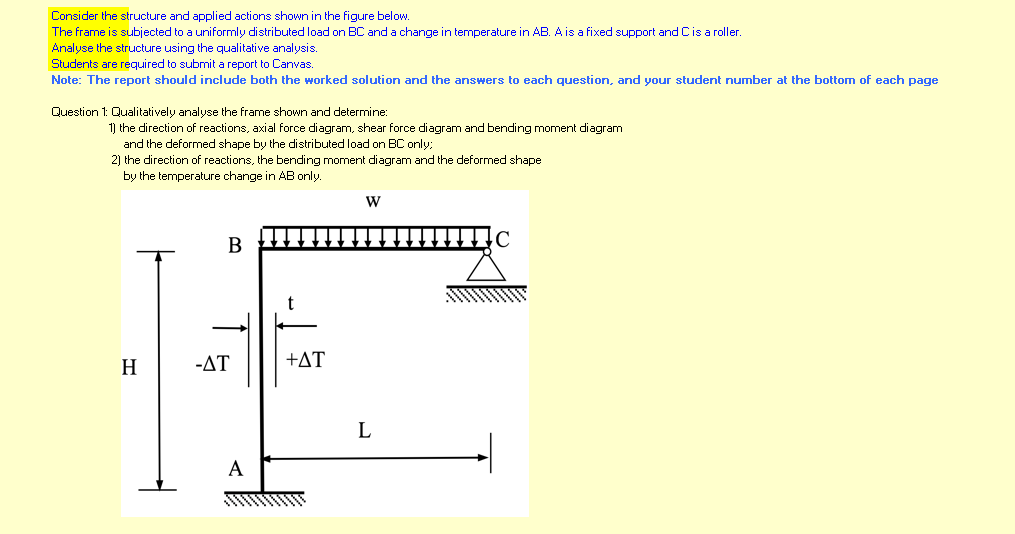

Question $1$: Qualitatively analyse the frame shown and determine:

the direction of reactions, axial force diagram, shear force diagram and bending moment diagram and the deformed shape by the distributed load on BC only;

the direction of reactions, the bending moment diagram and the deformed shape by the temperature change in $AB$ only.

W
