Question: Analyze the circuit using the mesh current method. a ) Indicate the direction of the current for each mesh. b ) Formulate the mesh equations

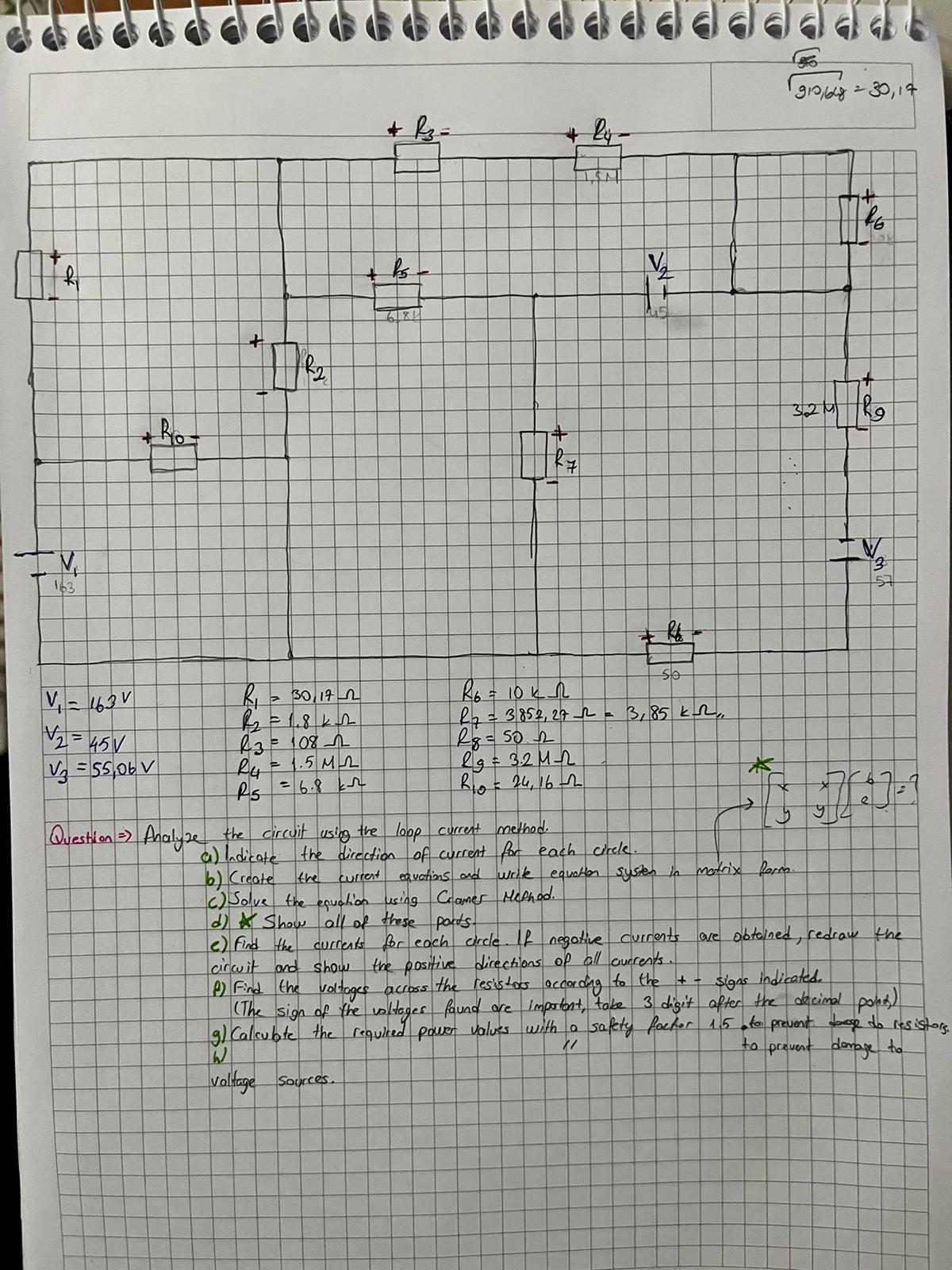

Analyze the circuit using the mesh current method.
a)Indicate the direction of the current for each mesh.
b)Formulate the mesh equations and write the system of equations in matrix form.
c)Solve the system of equations you have created using the Cramer's Rule.
d)Show all elements of each matrix whose determinant you take.
i) Try not to calculate the determinants manually. You can use a program or online solvers.
It is sufficient to write the results you find. Do not round the determinants.
e) Find the currents for each mesh. If you get negative currents, redraw the circuit and show the positive directions of all currents. (Take 3 digits after the decimal point, pay attention to the units, do not write things like 0.0000xxx Amperes)
f) Find the voltages across the resistors according to the indicated +- signs. (The signs of the found voltages are important, take 3 digits after the decimal point, pay attention to the units, do not use 0.0000xxx Volts)
g) Calculate the required power values for the resistors with a safety factor of 1.5 to prevent them from being damaged.
h) Calculate the required power values for the voltage sources with a safety factor of 1.5 to prevent them from being damaged.
Analyze the circuit using the mesh current
