Question: Analyze the circuit using the mesh current method. State the current directions. Write the current equations. Solve the set of equations using Cramer's method. Find

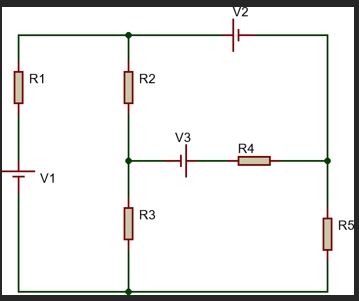

Analyze the circuit using the mesh current method. State the current directions. Write the current equations. Solve the set of equations using Cramer's method. Find the voltages on the resistors using the currents you obtained. VR1,VR2,VR3,VR4,VR5(R1=1k, R2=2.2k, R3=6.8k, R4=3.3k, R5=1.56k, V1=20V, V2=5V, V3=5.4V)
Analyze the circuit using the mesh current
