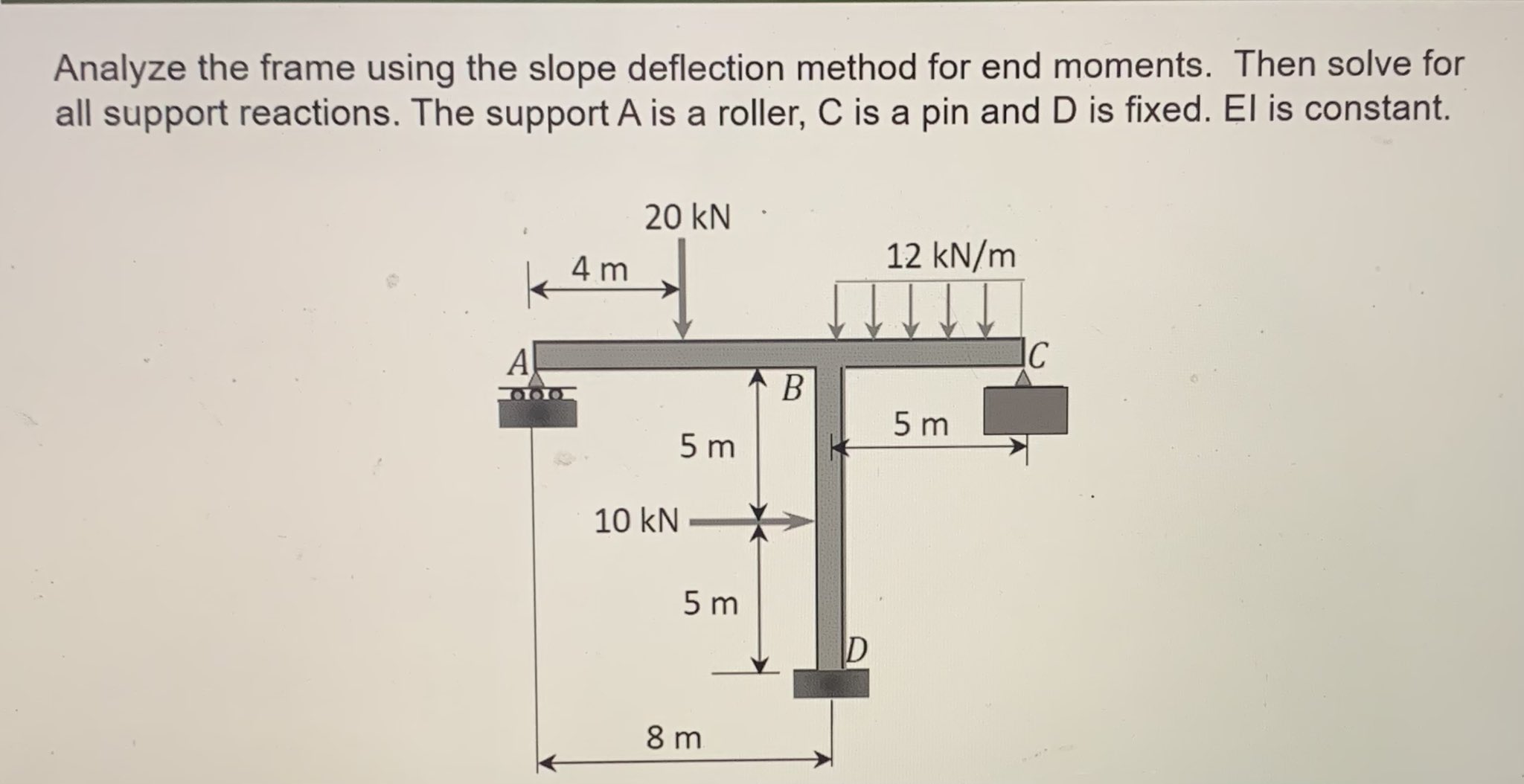

Question: Analyze the frame using the slope deflection method for end moments. Then solve for all support reactions. The support A is a roller, C is

Analyze the frame using the slope deflection method for end moments. Then solve for
all support reactions. The support A is a roller, C is a pin and D is fixed. El is constant.
Analyze the frame using the slope deflection

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
