Question: Analyze the frames A 1 2 3 4 and 4 ABCD using the portal method to draw the bending moment diagrams of the three storied

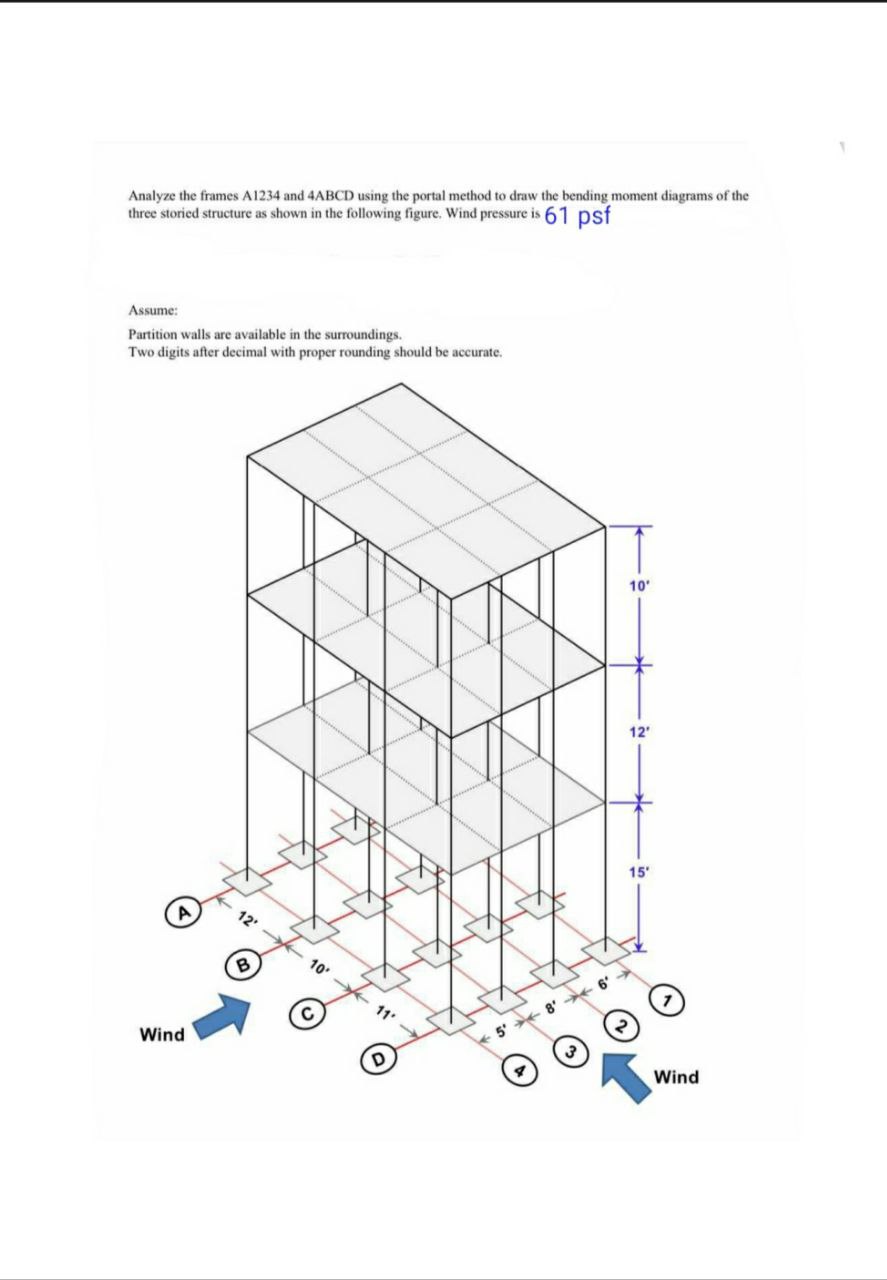

Analyze the frames A1234 and 4ABCD using the portal method to draw the bending moment diagrams of the
three storied structure as shown in the following figure. Wind pressure is 61 psf
Assume:
Partition walls are available in the surroundings.
Two digits after decimal with proper rounding should be accurate.
Analyze the frames A 1 2 3 4 and 4 ABCD using the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
