Question: AND OR Invert logic circuit is used to implement --- logic DISABLE ACTIVE HIGH ACTIVE LOW PASSIVE Clear my choice Select a suitable timing diagram

AND OR Invert logic circuit is used to implement --- logic

DISABLE ACTIVE HIGH ACTIVE LOW PASSIVE Clear my choice Select a suitable

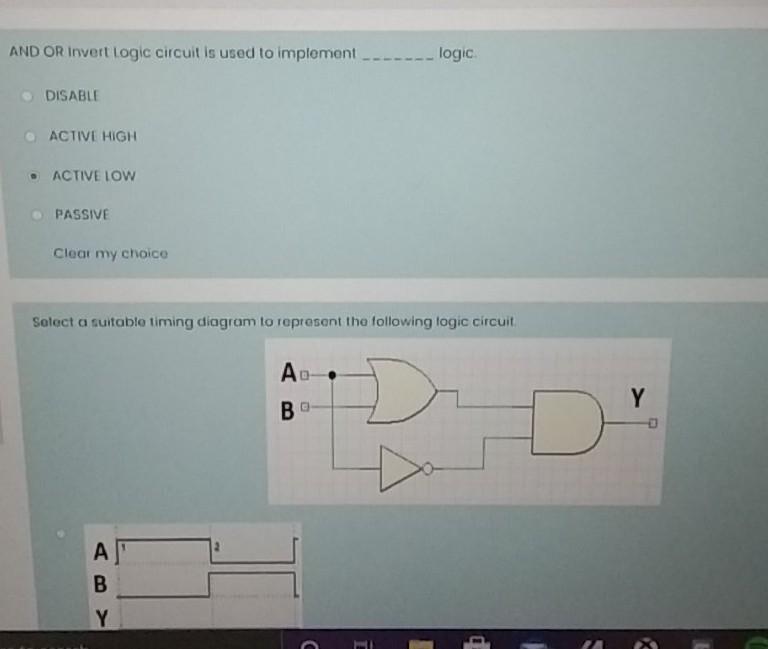

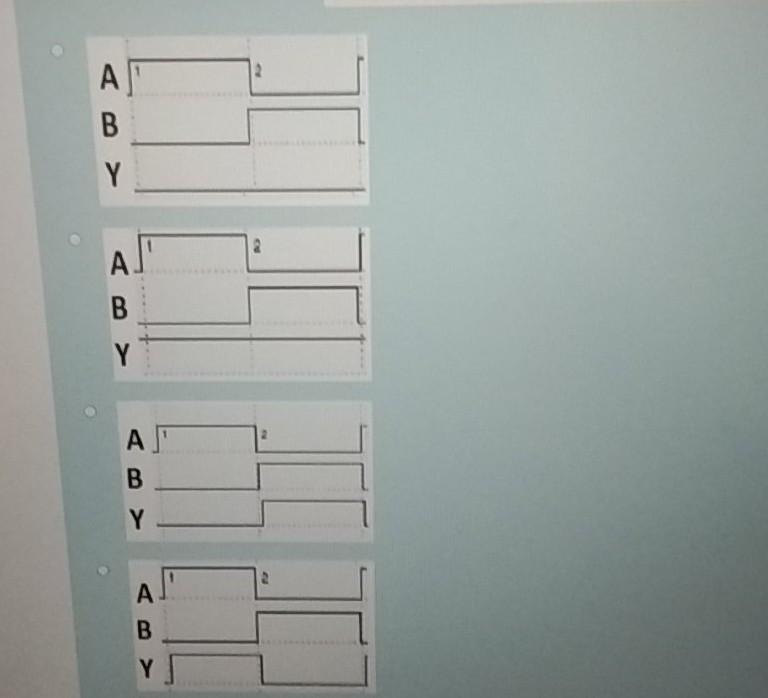

AND OR Invert logic circuit is used to implement --- logic DISABLE ACTIVE HIGH ACTIVE LOW PASSIVE Clear my choice Select a suitable timing diagram to represent the following logic circuit AD Y AN B Y ) B Y AS B Y A B Y A B Y

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
