Any help would be appreciated. DO NOT solve in any coding language other than arduino please.

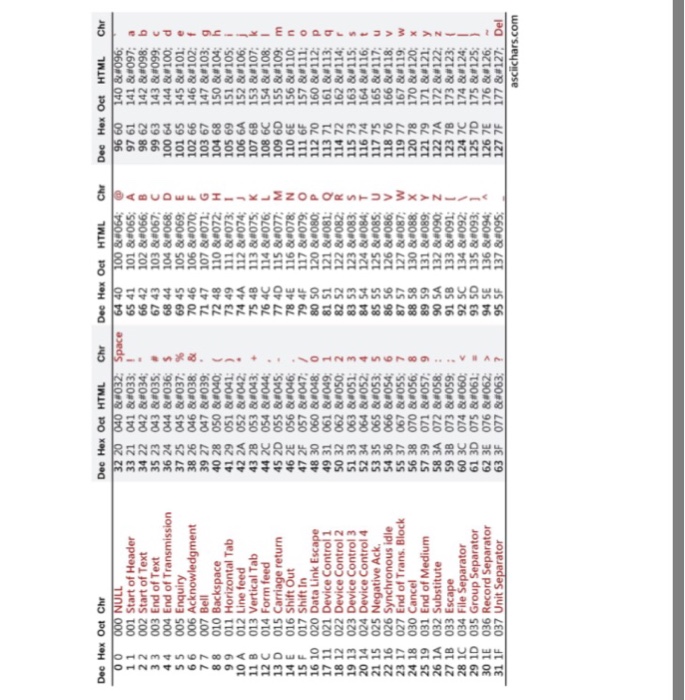

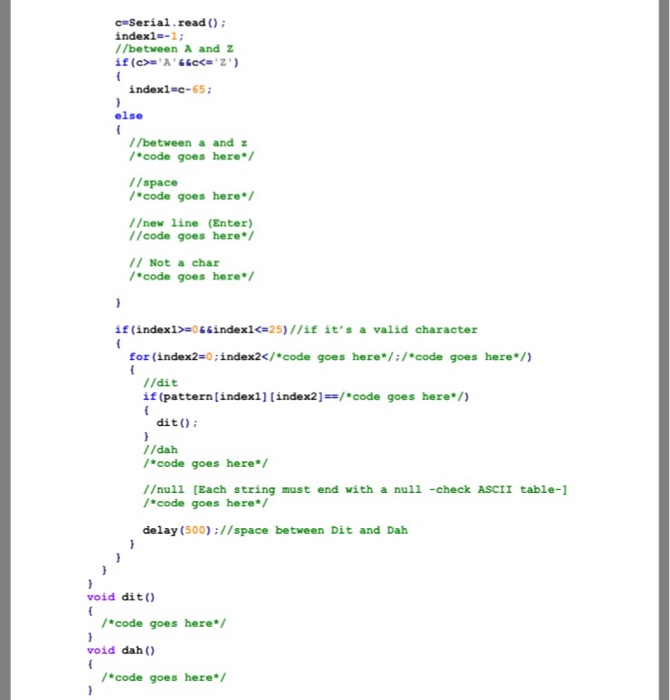

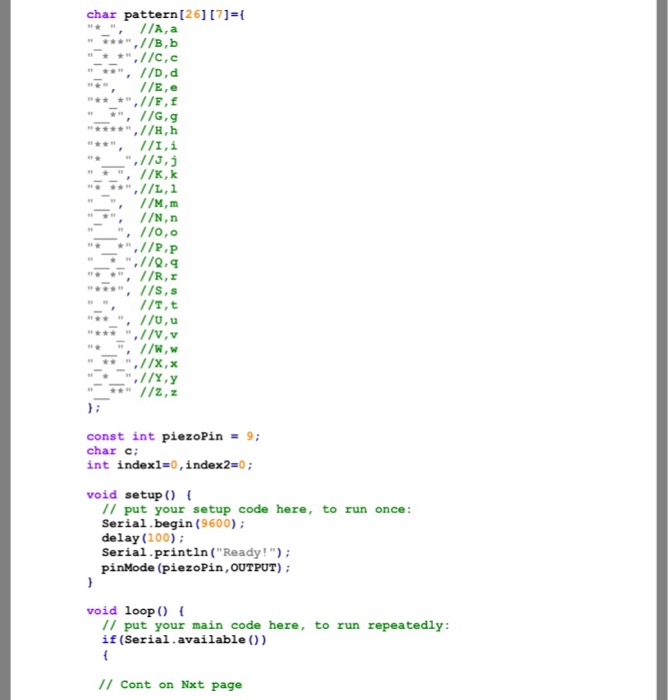

3) Draw a detailed flowchart for Lab 4 assignments (below) that describes how each part of your program should work (your approach to reading characters from the serial port, getting the correct pattern for each incoming character, and then play the correct Morse code tones). Your flowchart should consist of a series ofgoals, the decisions involved in reaching each goal, and the actions taken after each decision Lab #4 Assignment Write a program that wll read a single human readable character from the serial port and send back a string that represents the Morse code pattern for that character TA Signature: Date201 Write a function that processes the Morse code pattern by playing the correct tones for each character and also printing the Morse code pattern to the serial port. TA Signature:.. Date:/201 Your program should use these values for the lengths of the various delays you'll encounter in this assignment Type Dit (short) Dah (long) Space between dits and dahs500 milliseconds Space between letters Space between words Duration 100 milliseconds 300 milliseconds 300 milliseconds 700 milliseconds
