Question: Apply MATLAB to solve the mechanical system below. Which plot describe the displacement as a function of time i . e . x ( t

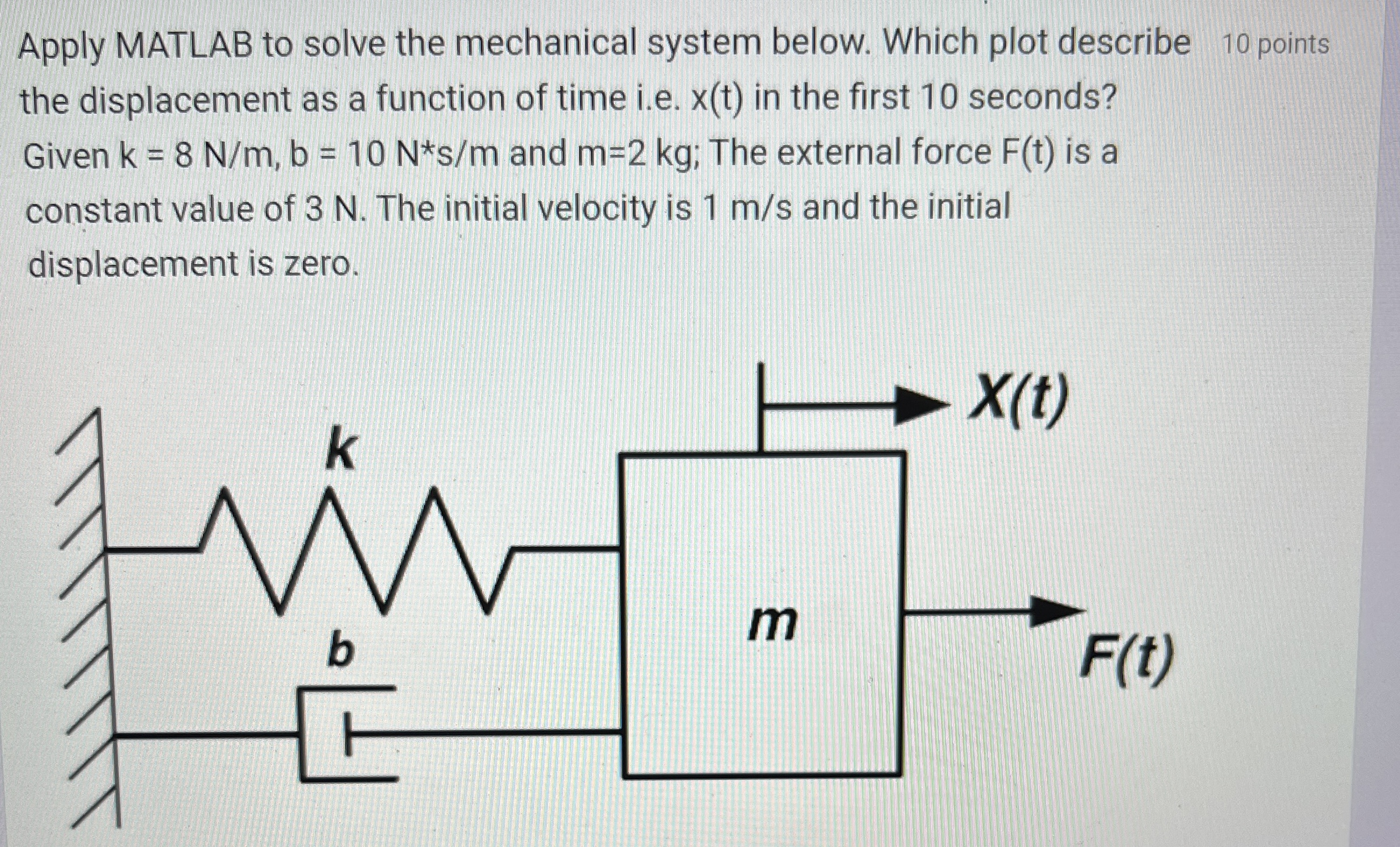

Apply MATLAB to solve the mechanical system below. Which plot describe
the displacement as a function of time i.e.x(t) in the first 10 seconds?
Given k=8Nm,b=10N**sm and m=2kg; The external force F(t) is a
constant value of 3 N . The initial velocity is 1ms and the initial
displacement is zero.
Apply MATLAB to solve the mechanical system

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
