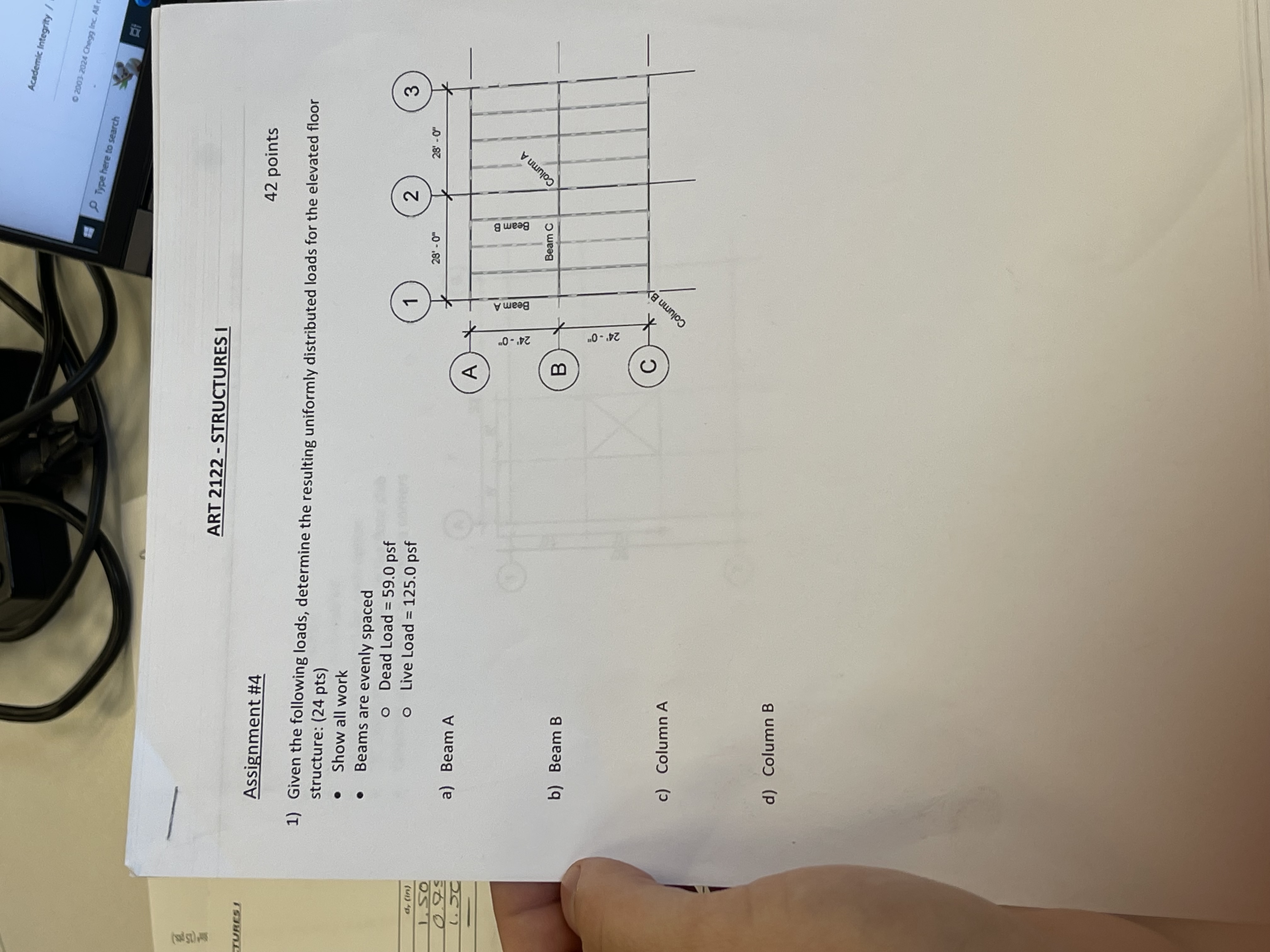

ART $2122-$ STRUCTURES I

Assignment #$4$

$42$ points

Given the following loads, determine the resulting uniformly distributed loads for the elevated floor structure: $(24$ pts$)$

Show all work

Beams are evenly spaced

${}_r(m)$

$1\mathrm{.}50$

$0\mathrm{.}75$

Dead Load $=59\mathrm{.}0$ psf

Live Load $=125\mathrm{.}0$ psf

a$)$ Beam $A$

b$)$ Beam $B$

c$)$ Column A

d$)$ Column B
