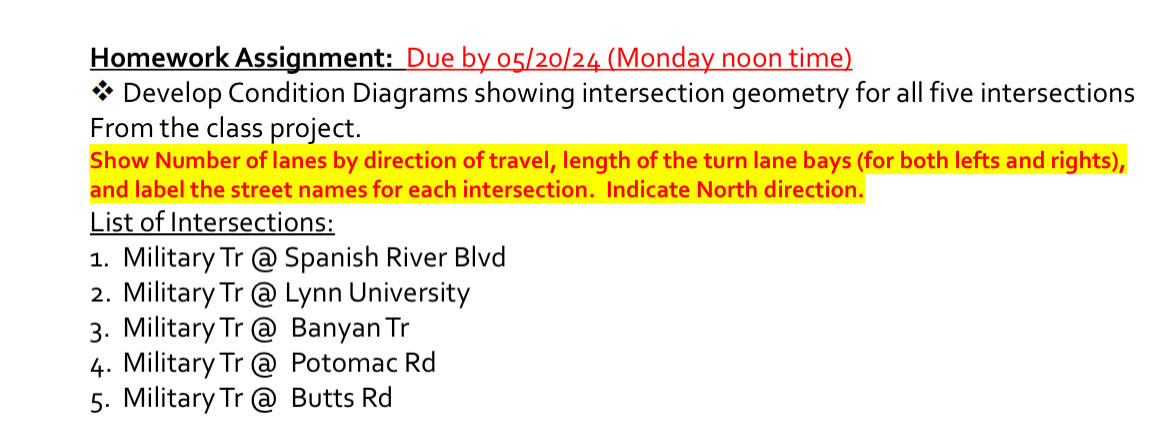

Homework Assignment: Due by $05/20/24($Monday noon time$)$

Develop Condition Diagrams showing intersection geometry for all five intersections From the class project.

Show Number of lanes by direction of travel, length of the turn lane bays $($for both lefts and rights$),$ and label the street names for each intersection. Indicate North direction.

List of Intersections:

Military $Tr$@ Spanish River Blvd

MilitaryTr @ Lynn University

MilitaryTr @ BanyanTr

Military $Tr$@ Potomac Rd

MilitaryTr @ Butts Rd
