Question: art 4 . Truth Table for an OR - AND logic circuit reate the MultiSim circuit shown below. Operate the A , B , C

art 4. Truth Table for an OR-AND logic circuit

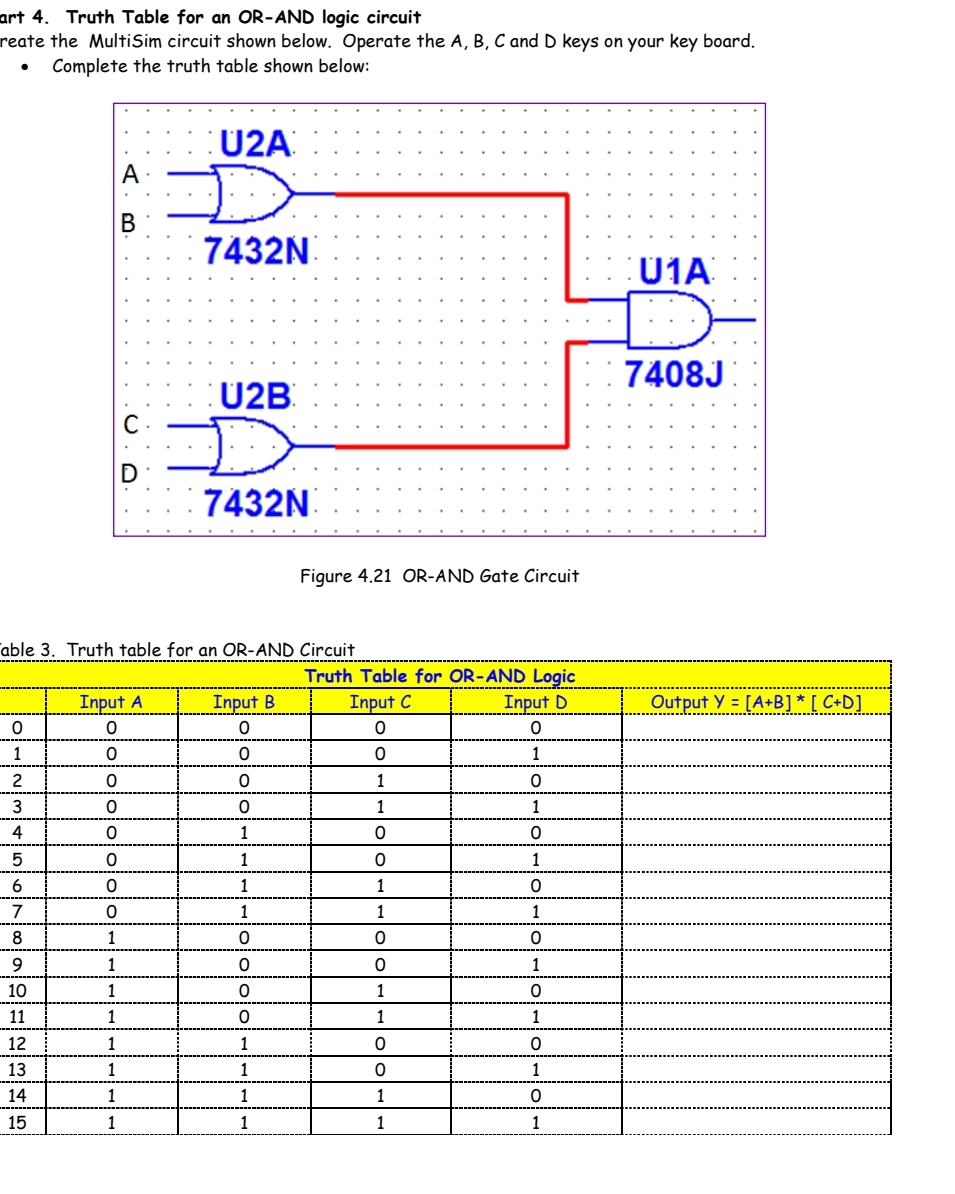

reate the MultiSim circuit shown below. Operate the A, B, C and D keys on your key board.
Co
able 3. Truth table for an OR-AND Circuit
\table[[Truth Table for OR-AND Logic],[,Input A,Input B,Input C,Input D,Output Y =[A+B]**[C+D] ibwant table answer2
art 4 . Truth Table for an OR - AND logic circuit

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
