Artificial Intelligence Question

Need help with exercise 3

## eight_puzzle.py ## by Brandon Bennett

## Specification of 8-Puzzle search problem ## designed for use with queue_search.py

print( "Loading eight_puzzle.py" )

## "deepcopy" is used to make a copy of a state and then change ## it to create a new state. ## This is needed because of the way Python handles lists. ## If you just assign a list to a new variable then you will ## just get a new pointer to the same list.

from copy import deepcopy

### Print out problem info def eight_problem_info(): print( "The sliding tile 8 puzzle" )

### Declarations of some example states

eight_state_0 = [ [1,2,3], ## 2 moves from goal [4,0,5], [7,8,6] ] eight_state_1 = [ [2,0,3], ## 5 moves from goal [1,4,6], [7,5,8] ]

eight_state_2 = [ [1,5,0], ## 10 moves from goal [7,3,2], [8,4,6] ]

eight_state_3 = [ [7,1,5], ## ? moves from goal [3,4,2], [8,0,6] ]

eight_initial_state = eight_state_3

## Specify the goal state: eight_goal_state = [ [1,2,3], [4,5,6], [7,8,0] ]

### For the successsor state function I just check which position on ### the board the zero is at and return the appropriate sequence of ### possible actions.

def eight_possible_actions( state ): if state[0][0] == 0: return ['up','left'] if state[0][1] == 0: return ['up','left','right'] if state[0][2] == 0: return ['up','right'] if state[1][0] == 0: return ['up','down','left'] if state[1][1] == 0: return ['up','down','left','right'] if state[1][2] == 0: return ['up','down','right'] if state[2][0] == 0: return ['down','left'] if state[2][1] == 0: return ['down','left','right'] if state[2][2] == 0: return ['down','right']

## The successor state function finds the position of ## the zero (ie the space) and swaps it with a neighbouring tile ## in accordance with the action. ## Note that the original state is first copied using the ## deepcopy function and then this copy is modified and returned.

def eight_successor_state( action, state ): newstate = deepcopy(state) row = tile_position(0,state)[0] col = tile_position(0,state)[1] if action == 'up': newstate[row][col] = newstate[row+1][col] newstate[row+1][col] = 0 if action == 'down': newstate[row][col] = newstate[row-1][col] newstate[row-1][col] = 0 if action == 'left': newstate[row][col] = newstate[row][col+1] newstate[row][col+1] = 0 if action == 'right': newstate[row][col] = newstate[row][col-1] newstate[row][col-1] = 0 return newstate

def tile_position( N, state ): for i in range(3): for j in range(3): if state[i][j] == N: return (i,j)

def eight_test_goal_state( state ): global eight_goal_state return eight_equivalent_states( state, eight_goal_state )

### The equivalent states function should compare each corresponding ### position in the two states. ### Just checking for equality will not work as the states will be ### Two different structures, but containing the same elements.

def eight_equivalent_states( s1, s2 ): ##print "eight_equivalent_states", s1, s2 for i in range(3): for j in range(3): if not(s1[i][j] == s2[i][j]): return False return True

## HEURISTICS

def eight_misplaced_tiles_heuristic( state ): return eight_num_diff_tiles_between_states( state, eight_goal_state )

def eight_num_diff_tiles_between_states( s1, s2 ): dist = 0 for i in range(3): for j in range(3): if ((not s1[i][j]==0) and (not(s1[i][j] == s2[i][j])) ): dist += 1 return dist

def eight_manhatten_heuristic( state ): #h = eight_manhatten_dist_between_states( state, eight_goal_state ) #print( "Manhatten heuristic:", h ) #return h return eight_manhatten_dist_between_states( state, eight_goal_state )

def eight_manhatten_dist_between_states( s1, s2 ): dist = 0 for i in range(1,9): dist += eight_manhatten_dist_of_tile_between_states( i, s1, s2 ) return dist

def eight_manhatten_dist_of_tile_between_states( i, s1, s2 ): (x1, y1) = tile_position( i, s1 ) (x2, y2) = tile_position( i, s2 ) return (abs(x1-x2) + abs(y1-y2))

#### Eight Puzzle problem specification eight_puzzle = ( None, eight_problem_info, eight_initial_state, eight_possible_actions, eight_successor_state, eight_test_goal_state )

--------------

eight_tester.py

import sys from tree import * from queue_search import *

from eight_puzzle import *

search( eight_puzzle, 'breadth_first', 50000, ['loop_check'] )

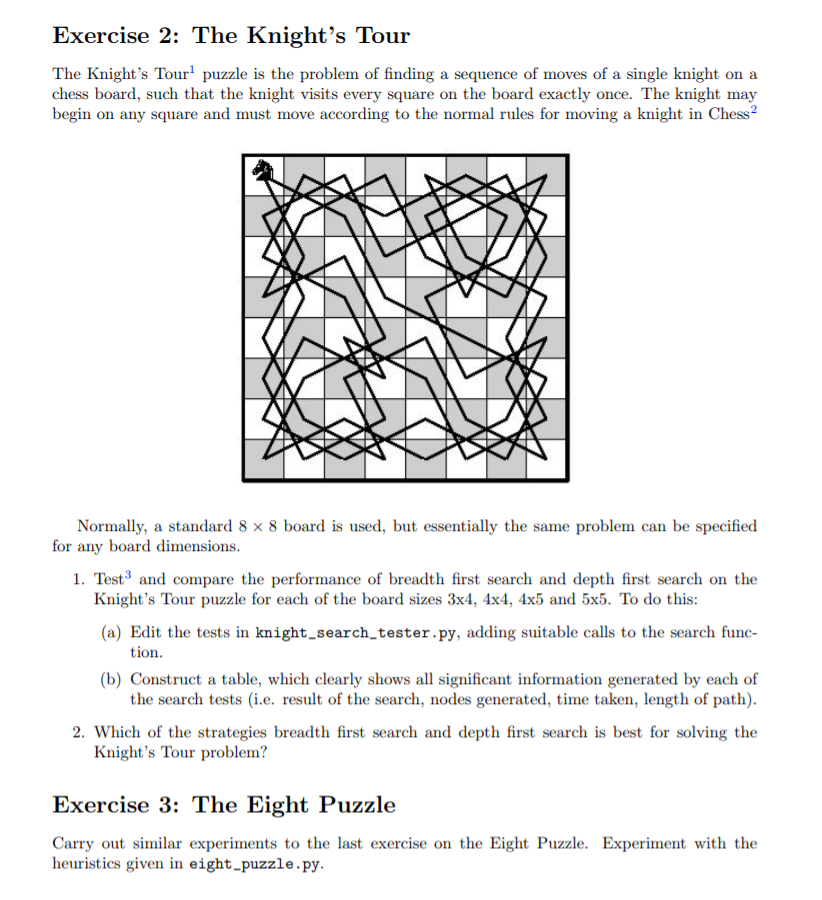

Exercise 2: The Knight's Tour The Knight's Tour puzzle is the problem of finding a sequence of moves of a single knight on a chess board, such that the knight visits every square on the board exactly once. The knight may begin on any square and must move according to the normal rules for moving a knight in Chess2 Normally, a standard 8 x 8 board is used, but essentially the same problem can be specified 1. Test3 and compare the performance of breadth first search and depth first search on the (a) Edit the tests in knight_search_tester.py, adding suitable calls to the search func- for any board dimensions. Knight's Tour puzzle for each of the board sizes 3x4, 4x4, 4x5 and 5x5. To do this: Lien. (b) Construct a table, which clearly shows all significant information generated by each of the search tests (i.e. result of the search, nodes generated, time taken, length of path) 2. Which of the strategies breadth first search and depth first search is best for solving the Knight's Tour problem? Exercise 3: The Eight Puzzle Carry out similar experiments to the last exercise on the Eight Puzzle. Experiment with the heuristics given in eight-puzzle.py. Exercise 2: The Knight's Tour The Knight's Tour puzzle is the problem of finding a sequence of moves of a single knight on a chess board, such that the knight visits every square on the board exactly once. The knight may begin on any square and must move according to the normal rules for moving a knight in Chess2 Normally, a standard 8 x 8 board is used, but essentially the same problem can be specified 1. Test3 and compare the performance of breadth first search and depth first search on the (a) Edit the tests in knight_search_tester.py, adding suitable calls to the search func- for any board dimensions. Knight's Tour puzzle for each of the board sizes 3x4, 4x4, 4x5 and 5x5. To do this: Lien. (b) Construct a table, which clearly shows all significant information generated by each of the search tests (i.e. result of the search, nodes generated, time taken, length of path) 2. Which of the strategies breadth first search and depth first search is best for solving the Knight's Tour problem? Exercise 3: The Eight Puzzle Carry out similar experiments to the last exercise on the Eight Puzzle. Experiment with the heuristics given in eight-puzzle.py
