Question: As shown in the figure, the water surface elevation at section 2 of the water vein overflowing the dam spillway is 3 4 m ,

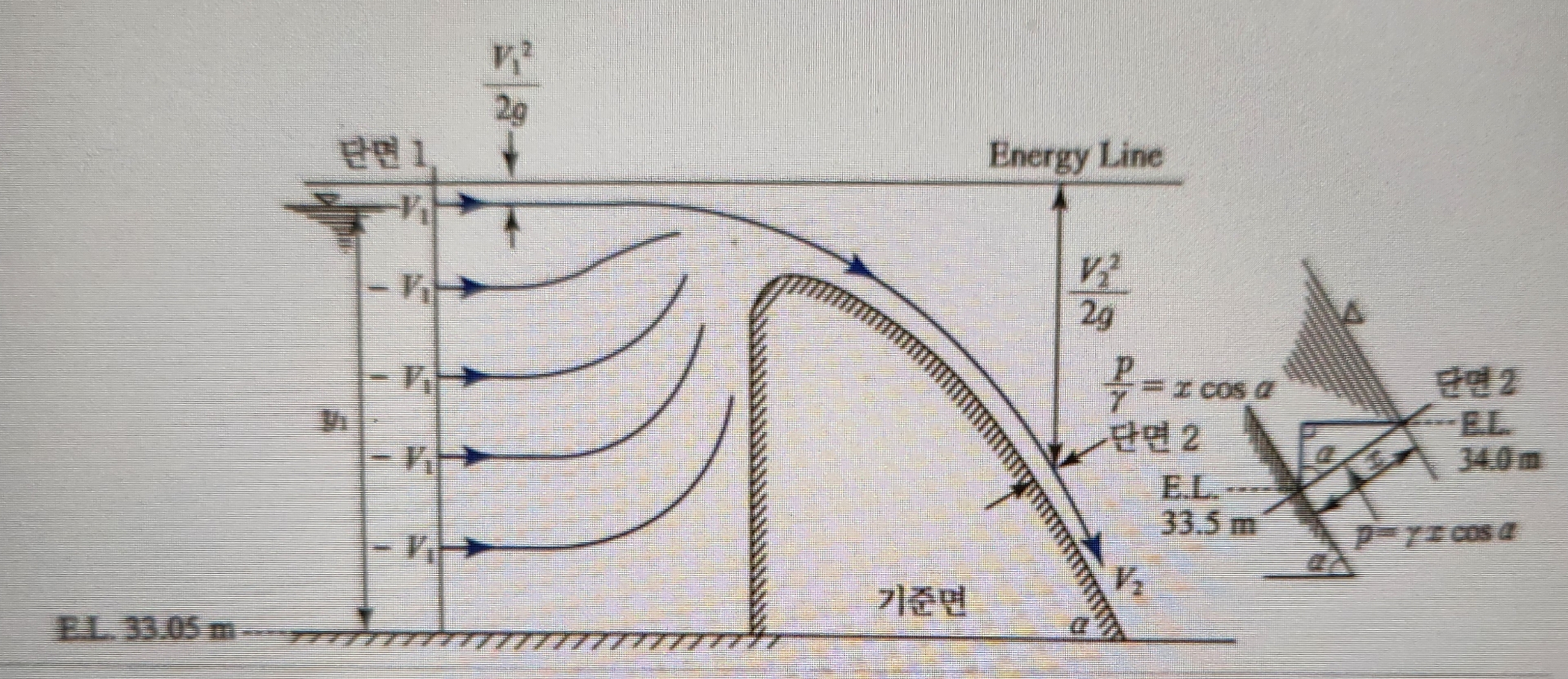

As shown in the figure, the water surface elevation at section 2 of the water vein overflowing the dam spillway is 34 m, and the elevation of the spillway surface with a 60\deg slope is 33.5 m. Calculate the pressure and velocity at the spillway surface when the surface velocity Vs =6 m/sec at section 2. Also, find the water depth and velocity at section 1 of the approach channel when the elevation of the reservoir bottom is 33.05 m. However, assume an incompressible ideal fluid.
As shown in the figure, the water surface
