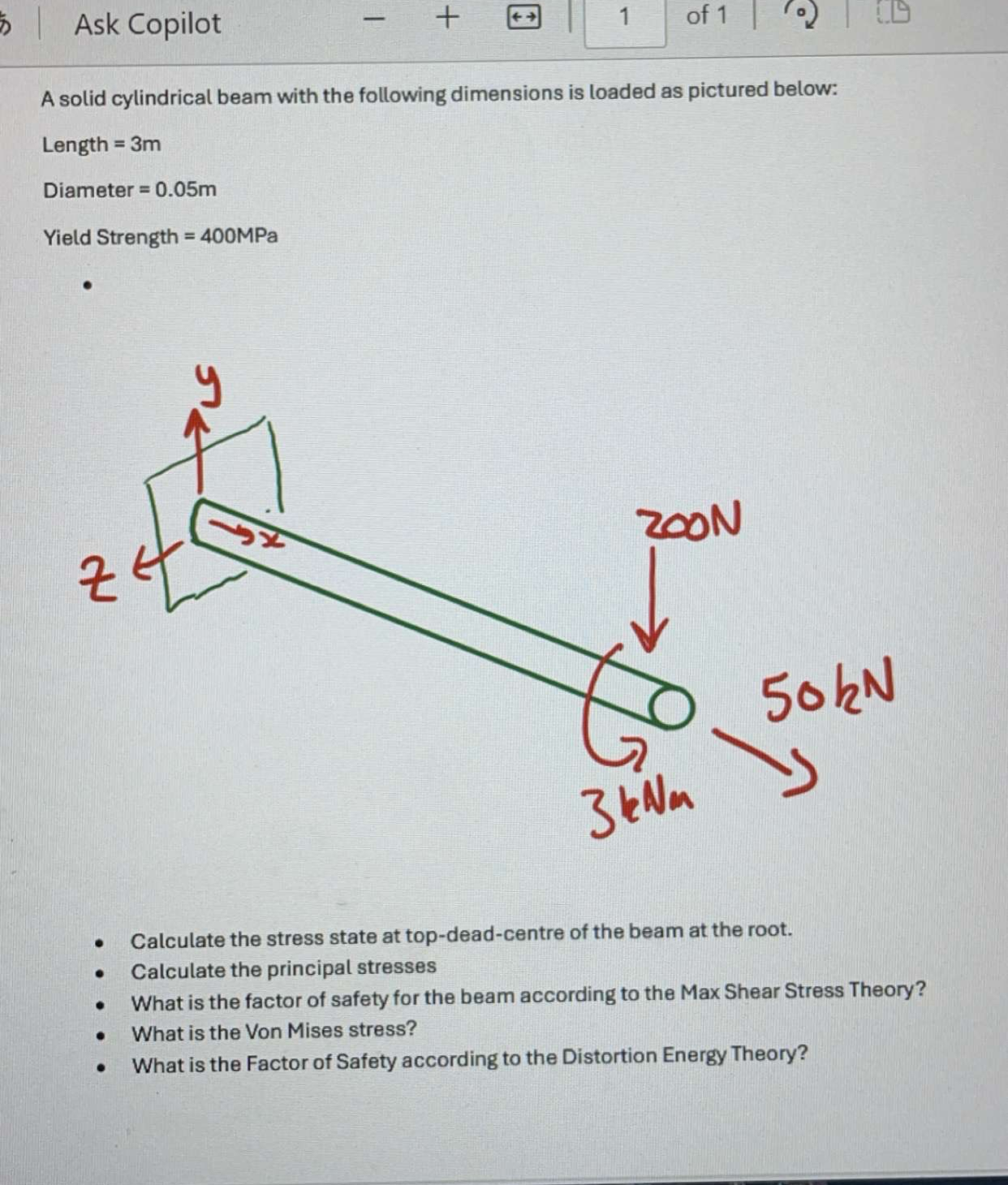

A solid cylindrical beam with the following dimensions is loaded as pictured below:
Length =3m
Diameter =0.05m
Yield Strength =400MPa
Calculate the stress state at top-dead-centre of the beam at the root.
Calculate the principal stresses
What is the factor of safety for the beam according to the Max Shear Stress Theory?
What is the Von Mises stress?
What is the Factor of Safety according to the Distortion Energy Theory?
