Question: ASSIGNMENT - 2 2 The figure ( Figure 2 ) below shows a tank containing oil ( sp . gravity 0 . 9 8 )

ASSIGNMENT-2

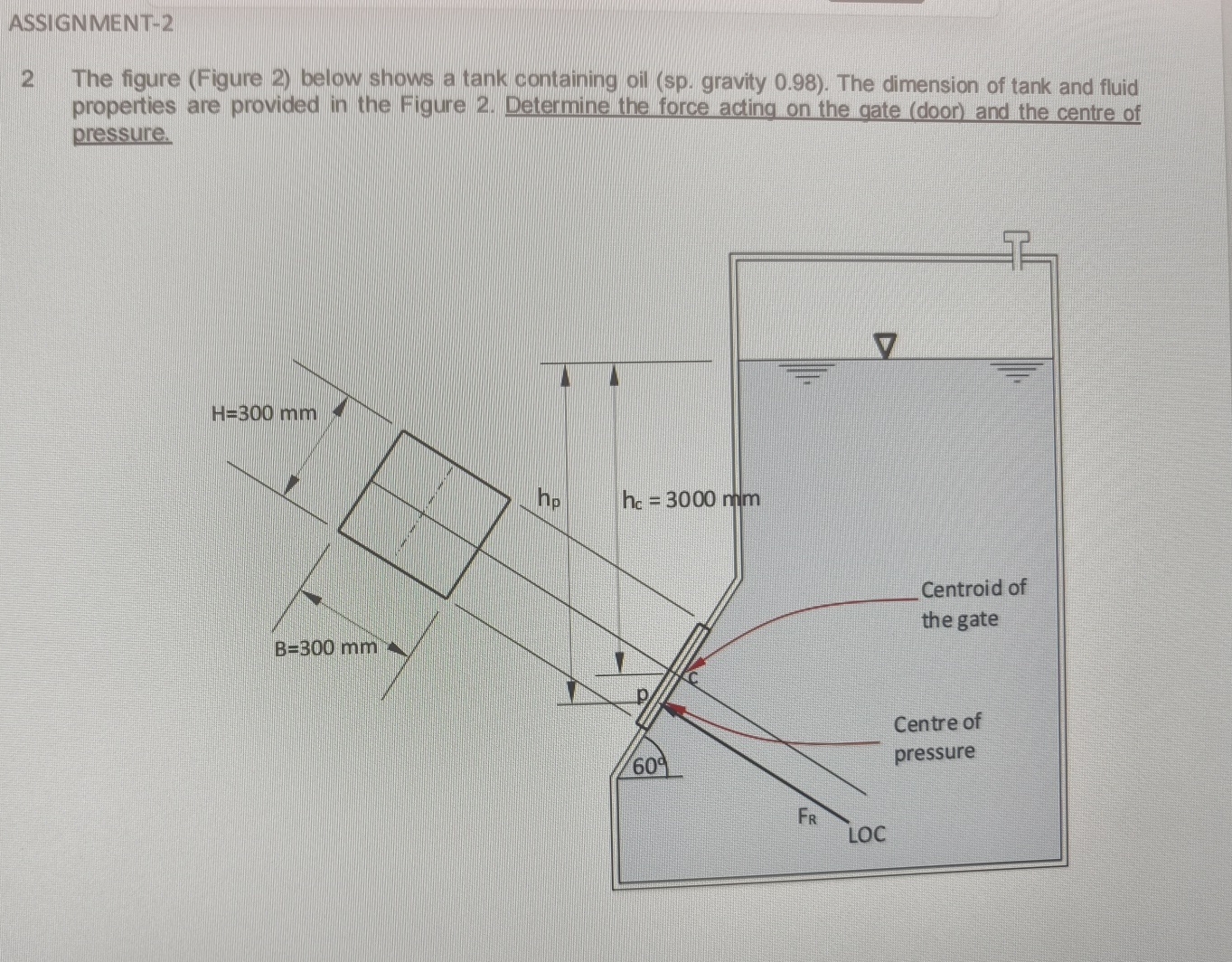

2 The figure (Figure 2) below shows a tank containing oil (sp. gravity 0.98). The dimension of tank and fluid properties are provided in the Figure 2. Determine the force acting on the gate (door) and the centre of pressure.
ASSIGNMENT - 2 2 The figure ( Figure 2 ) below

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
