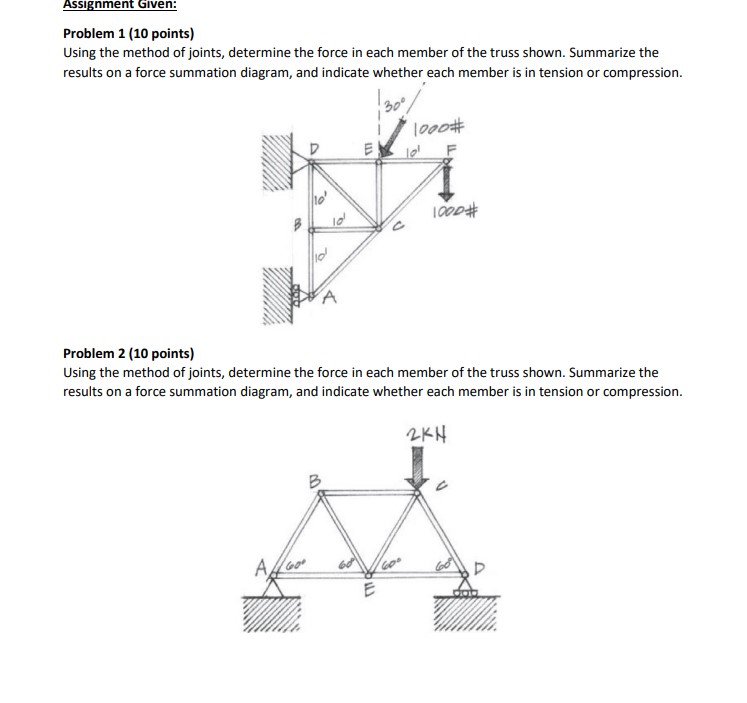

Assignment Given:

Problem $1(10$ points$)$

Using the method of joints, determine the force in each member of the truss shown. Summarize the

results on a force summation diagram, and indicate whether each member is in tension or compression.

Problem $2(10$ points$)$

Using the method of joints, determine the force in each member of the truss shown. Summarize the

results on a force summation diagram, and indicate whether each member is in tension or compression.
