Question: At a given instant the slider block B shown in is moving to the right with the speed v B = 2 f t s

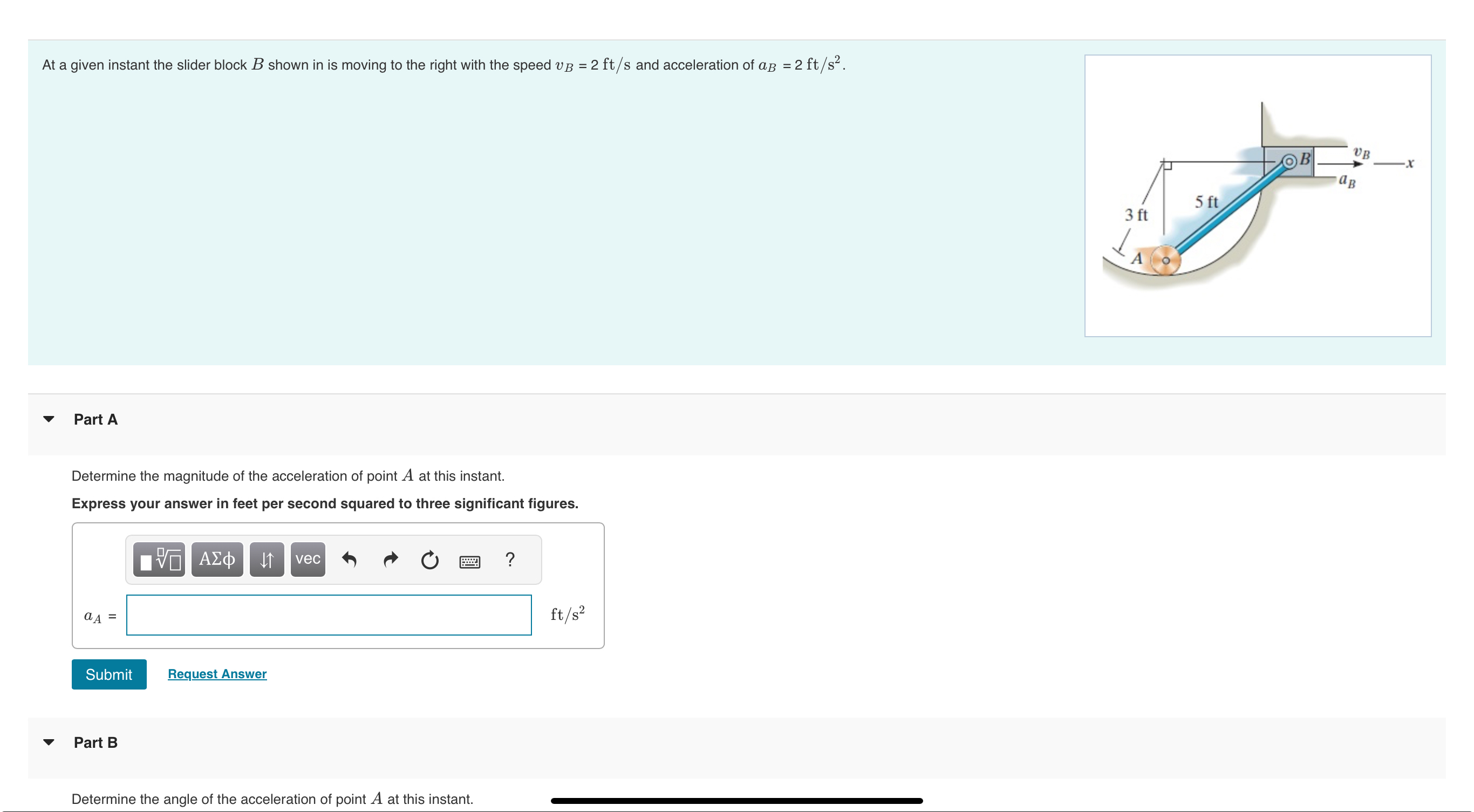

At a given instant the slider block B shown in is moving to the right with the speed vB=2fts and acceleration of aB=2fts2.
Part A
Determine the magnitude of the acceleration of point A at this instant.
Express your answer in feet per second squared to three significant figures.
Part B
Determine the angle of the acceleration of point A at this instant.
Part C
Determine the magnitude of angular acceleration of link AB
At a given instant the slider block B shown in is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Velocity 1- If the block at C is moving downward at 4 ft/s, determine the angular velocity of AB at the instant. {2 rad/s; Comprehension (State Definition, Free Body Diagram and/or Diagram Sketch) 3...

Q:

1 6 - 6 1 . At a given instant the slider block B is moving to the right with the motion shown. Determine the angular acceleration of link A B and the acceleration of point A at this instant.

Q:

At a given instant the slider block B is moving to the right with the motion shown. Determine the angular acceleration of link AB and the acceleration of point A at this instant. 3 ft 5 ft OB VB = 6...

Q:

At a given instant the slider block AA is moving to the right with the motion shown. Suppose that rr = 1 . 8 mm and ll = 1 . 8 mm . ( Figure 1 ) Determine the angular acceleration of link AB ....

Q:

At a given instant the slider block A is moving to the right with the motion shown. Determine the angular acceleration of link AB and the acceleration of point B at this instant. B 2 m 30 2 m VA = 4...

Q:

At a given instant the slider block A is moving to the right with the motion shown. Suppose that r = 2 m and l = 2 m . ( Figure 1 ) Figure sure 1 of 1 Determine the direction of the acceleration of...

Q:

At a given instant, the slider block A has the velocity and deceleration shown in the figure below. Determine the magnitude of the acceleration of block B at this instant. v A = 1 . 5 m s , a A = 1 6...

Q:

Problem 1 : The system in the figure consists of two blocks ( particles ) A and B of masses m A = 2 0 k g and m B = 1 0 0 k g . The cable is pulled with a force P as shown. The coefficients of static...

Q:

At the instant shown, slider block B is moving to the right with a constant acceleration, and its speed is 6 in./s. Knowing that after slider block A has moved 10 in. to the right its velocity is 2.4...

Q:

A2/2 (10 marks) The slider block B has velocity ve and acceleration ag at the particular instant shown in Figure A2.2. The slider block is connected to wheel C with a pin at point A. 300mm j 150 mm...
