Question: At the instance shown below, the base of the robotic arm rotates about the Z axis with an angular velocity of w = 5

At the instance shown below, the base of the robotic arm rotates

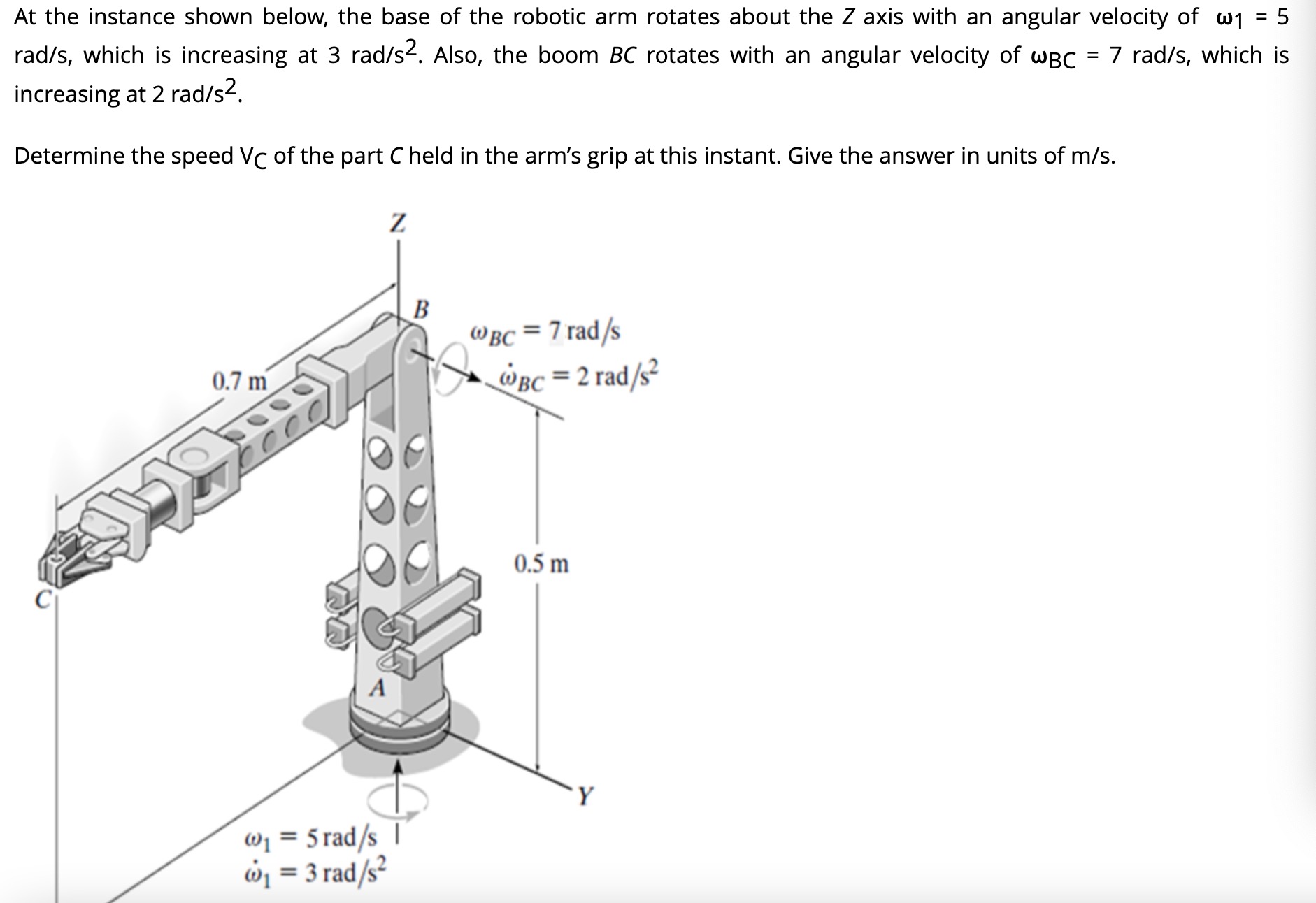

At the instance shown below, the base of the robotic arm rotates about the Z axis with an angular velocity of w = 5 rad/s, which is increasing at 3 rad/s. Also, the boom BC rotates with an angular velocity of WBC 7 rad/s, which is increasing at 2 rad/s. = Determine the speed VC of the part C held in the arm's grip at this instant. Give the answer in units of m/s. 0.7 m A = 5 rad/s w = 3 rad/s B WBC = 7 rad/s WBC = 2 rad/s 0.5 m

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!
