Question: At the instant shown, input link A B is moving with angular velocity 1 2 r a d s counterclockwise and angular acceleration of 4

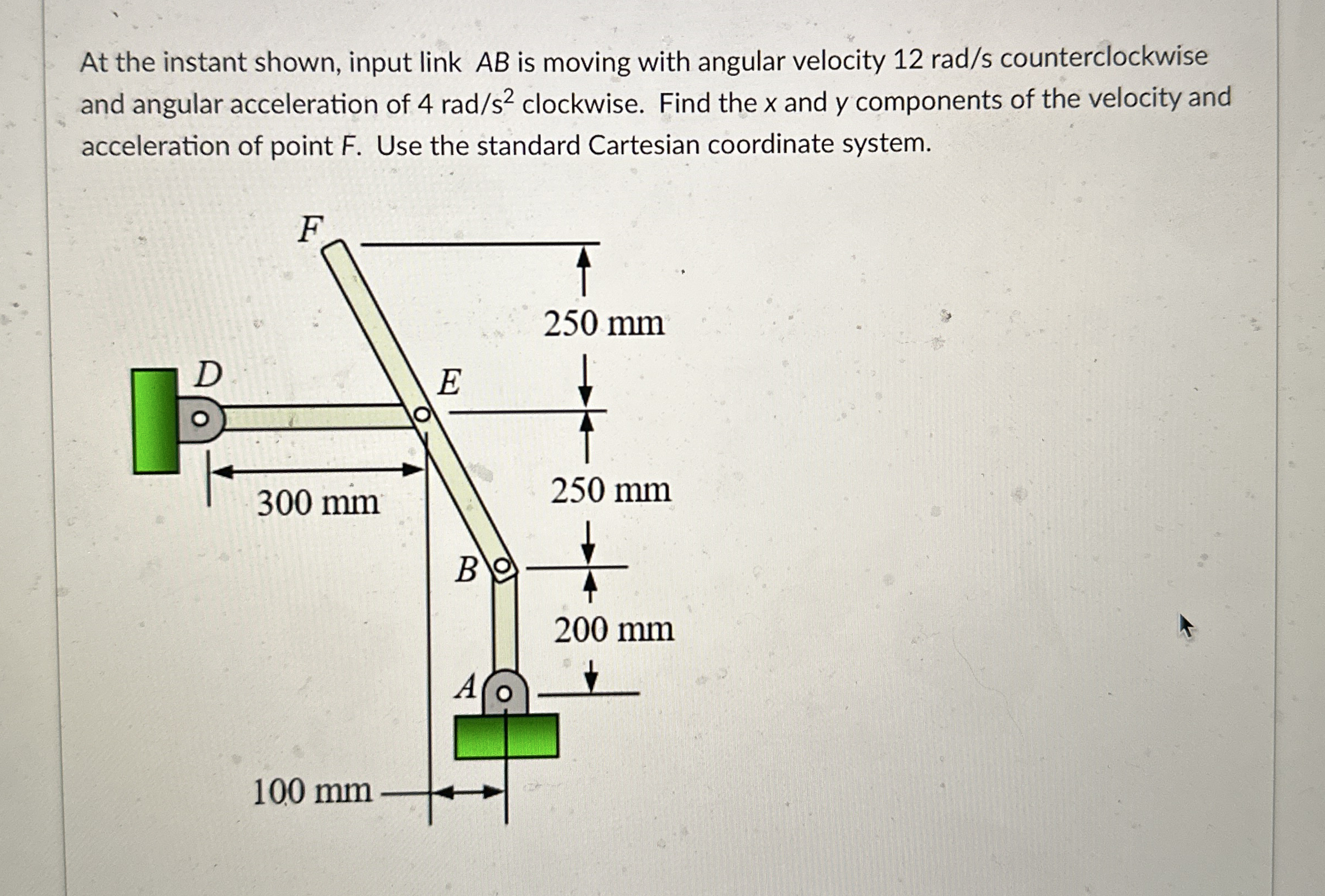

At the instant shown, input link AB is moving with angular velocity 12rads counterclockwise and angular acceleration of 4rads2 clockwise. Find the x and y components of the velocity and acceleration of point F. Use the standard Cartesian coordinate system.
At the instant shown, input link A B is moving

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
