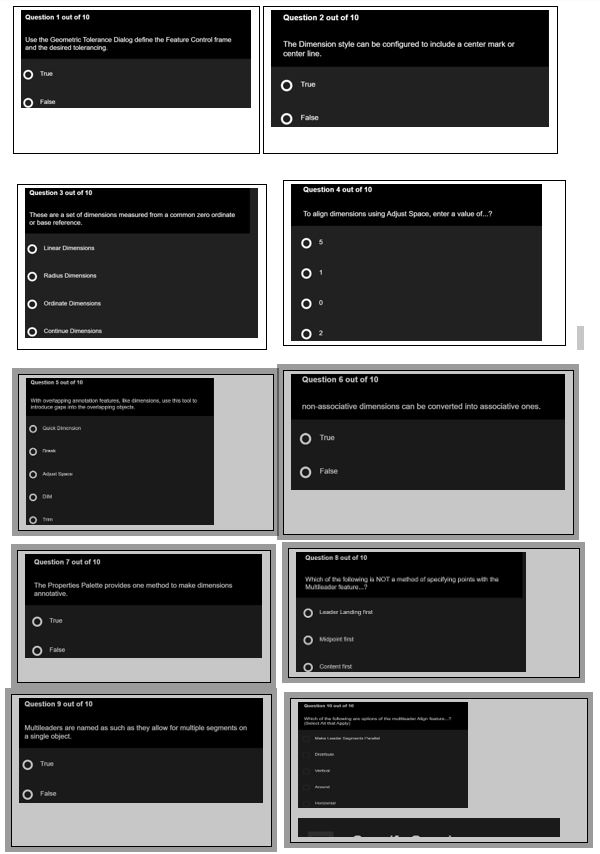

Autodesk AutoCAD $2$D Drafting, Dimensioning and Detailing PT

Multiple Choice questions

Please solve and justify it$.$

Question $1$ out of $10$

Use the Geometric Tolerance Dialog define the Feature control frame and the desired tolerancing.

o True

o False

Question $2$ out of $10$

The Dimension Style can be configured to include a centre mark or centre line.

o True

o False

Question $3$ out of $10$

These are a set of dimensions measured from a common zero ordinate or base reference.

o True

o False

Question $4$ out of $10$

To align dimension using Adjust Space, enter a value of $...?$

o $5$

o $1$

o $0$

o $2$

Question $5$ out of $10$

With overlapping annotation features, like dimensions, use this tool to introduce gaps into the overlapping objects.

o Quick Dimension

o Break

o Adjust Space

o DIM

o Trim

Question $6$ out of $10$

Non$-$associative dimensions can be converted into associative ones.

o True

o False

Question $7$ out of $10$

The Properties Palette provides one method to make dimensions annotative.

o True

o False

Q$8$uestion $8$ out of $10$

Which of the following is NOT a method of specifying points with the Multileader feature...?

o Leader Landing First

o Midpoint first

o Content first

Question $9$ out of $10$

Multileader are named as such as they allow for multiple segments on a single object.

o True

o False

Question $10$ out of $10$

Which of the following are options of the multileader Align feature... $?$

o Make Leader Segments Parallel

o Distribute

o Vertical

o Around

o Horizontal

o Specify Spacing

o Use Current spacing.
