Question: B 1 . For the truss below, take P _ ( 1 ) = 4 kip and P _ ( 2 ) = 3 kip:

B1. For the truss below, take P_(1)=4 kip and P_(2)=3 kip:

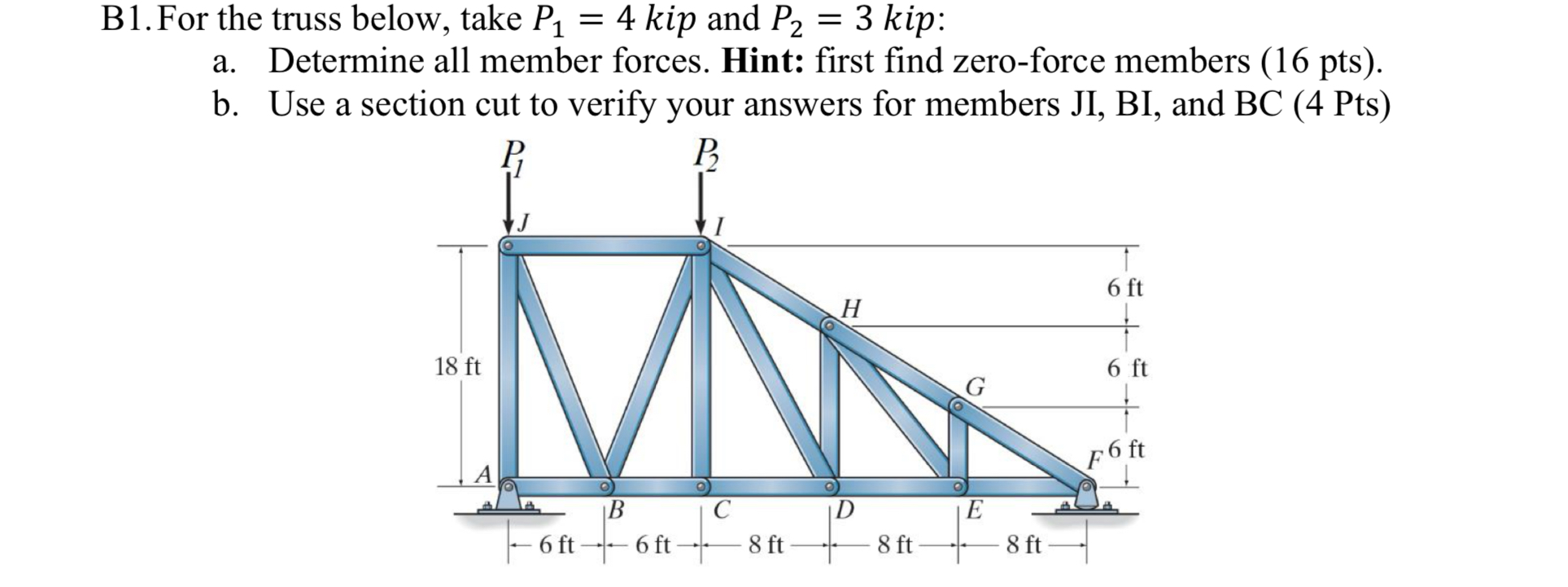

a. Determine all member forces. Hint: first find zero-force members (16 pts ).
b. Use a section cut to verify your answers for members JI, BI, and BC (4 Pts)
B 1 . For the truss below, take P _ ( 1 ) = 4 kip

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
