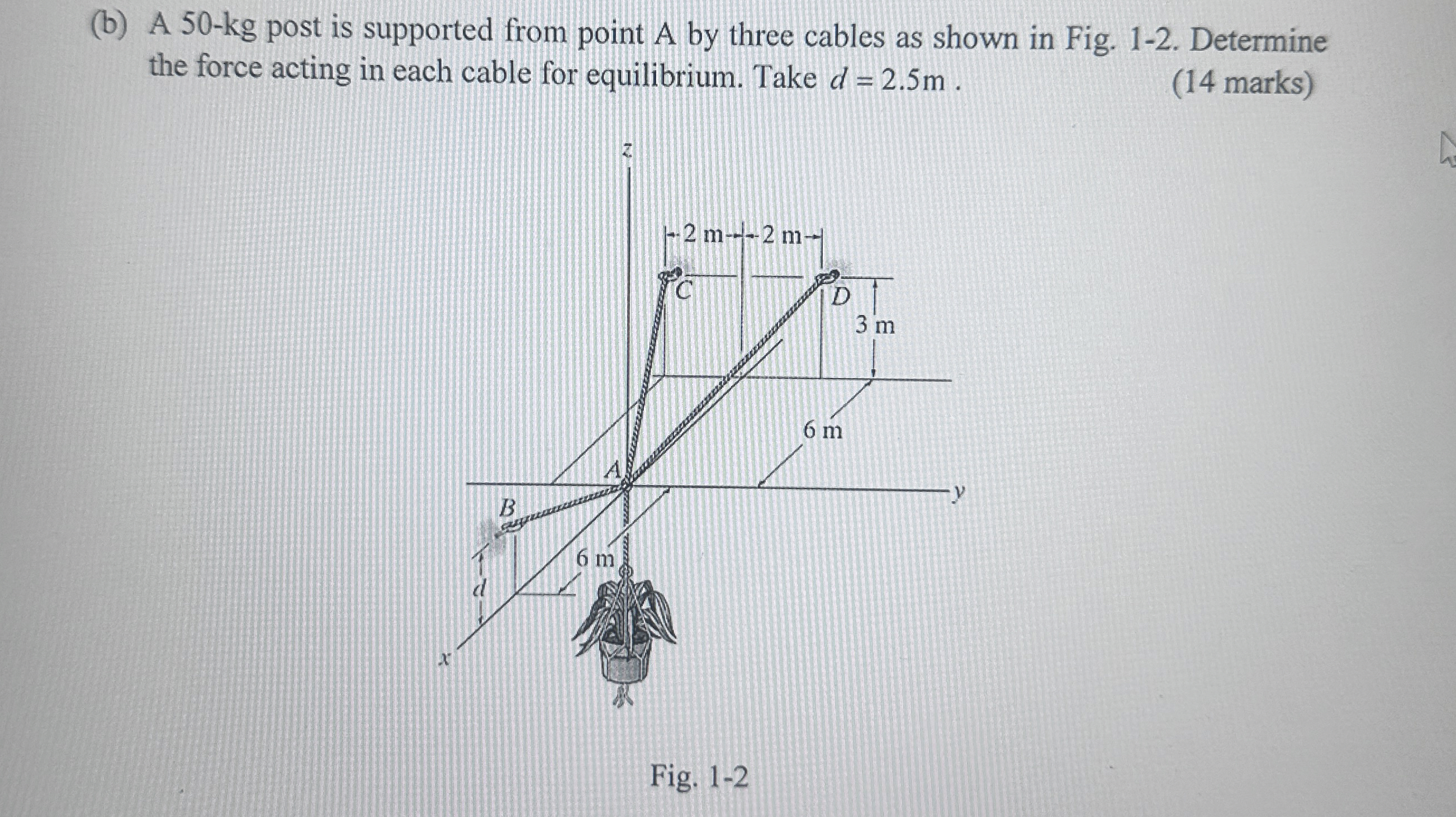

Question: ( b ) A 5 0 - kg post is supported from point A by three cables as shown in Fig. 1 - 2 .

(b) A 50-kg post is supported from point A by three cables as shown in Fig. 1-2. Determine
the force acting in each cable for equilibrium. Take d=2.5m.
(14 marks)
Fig. 1-2
( b ) A 5 0 - kg post is supported from point A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
