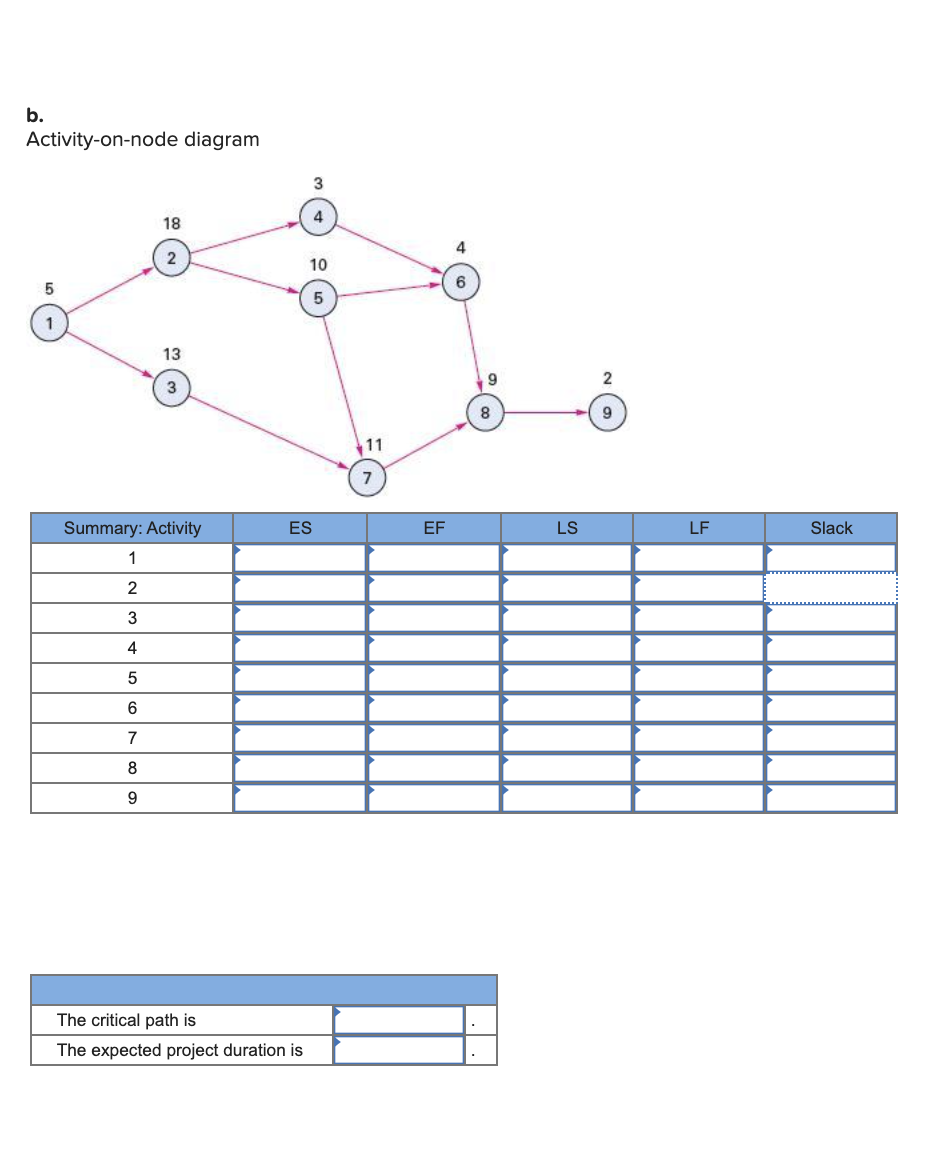

Question: b. Activity-on-node diagram 3 18 4 2 10 6 5 13 9 3 8 9 11 Summary: Activity ES EF LS LF Slack 1 2

b. Activity-on-node diagram 3 18 4 2 10 6 5 13 9

b. Activity-on-node diagram 3 18 4 2 10 6 5 13 9 3 8 9 11 Summary: Activity ES EF LS LF Slack 1 2 3 4 5 6 7 8 9 The critical path is The expected project duration is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Please place activity time on arrow it is directly above node 3. (20 points) the following AON network diagram is taken from 1(b) above (activity times are above the nodes). 3 18 4 2 10 5. 5 13 9 2 8...

3. (20 points) the following AON network diagram is taken from 1(b) above (activity times are above the nodes). 3 18 4 2 10 5. 5 13 9 2 8 9 11 a) Convert this AON network to an AOA network diagram (5...

For each of the problems listed, determine the following quantities for each activity: the earliest start time, latest start time, earliest finish time, latest finish time, and slack time. List the...

At a local university, the Student Commission on Programming and Entertainment (SCOPE) is preparing to host its first rock concert of the school year. To successfully produce this rock concert, SCOPE...

For the problem listed, determine the following quantities for each activity. 4:31:50 b. Activity-on-node diagram 3 18 4 Book 4 10 5 6 5 Print 13 erences 8 11 7 Summary: Activity ES EF LS LF Slack 1...

A A project is made of 7 activities: a b m 14 18 16 14 34 15 Data Process Modeling Modeling 3 1 11 1 4 1 Predecessors -- -- Analysis Activity Initiation Analysis Analysis a. Draw an A on A chart. b....

Just need the second part of B and D, E, G Problem 9-09 (Algorithmic) At a local university, the Student Commission on Programming and Entertainment (SCOPE) preparing to host its first rock concert...

Problem 17-5 Determine the following quantities for each activity. 18 4 2 10 5 13 3 9 2 8 9 11 7 Summary: Activity ES EF LS LF Slack 1 2 3 4 5 6 7 8 9
