$($b$)$ Convert the fetched binary sequence into the corresponding instruction $($for example: add $$t0,$$$t1,$$$t2.$ Use symbolic names for the registers $(2$ points$)$

Fer norte $(n)()$ rafar to tha dotanoth discrom halnux. datapath for each of the labels. Write the value in binary format. Note the values are of different bit widths $($i$.$e$.$ number of bits used$).$ If the bit width of an answer is incorrect, marks will be deducted. If the value at a label is undetermined, write "Undetermined" for that label. $(3$ points$)($d$)$ Find the value for the label G$.$ Write the answer in hexadecimal format $($start

with the prefix $"0x").(4$ points$)$

$($e$)$ Fill out the data memory contents in hexadecimal format after this instruction has

executed. $(4$ points$)$Question $3$: Single$-$cycle Datapath $(15$ points$)$

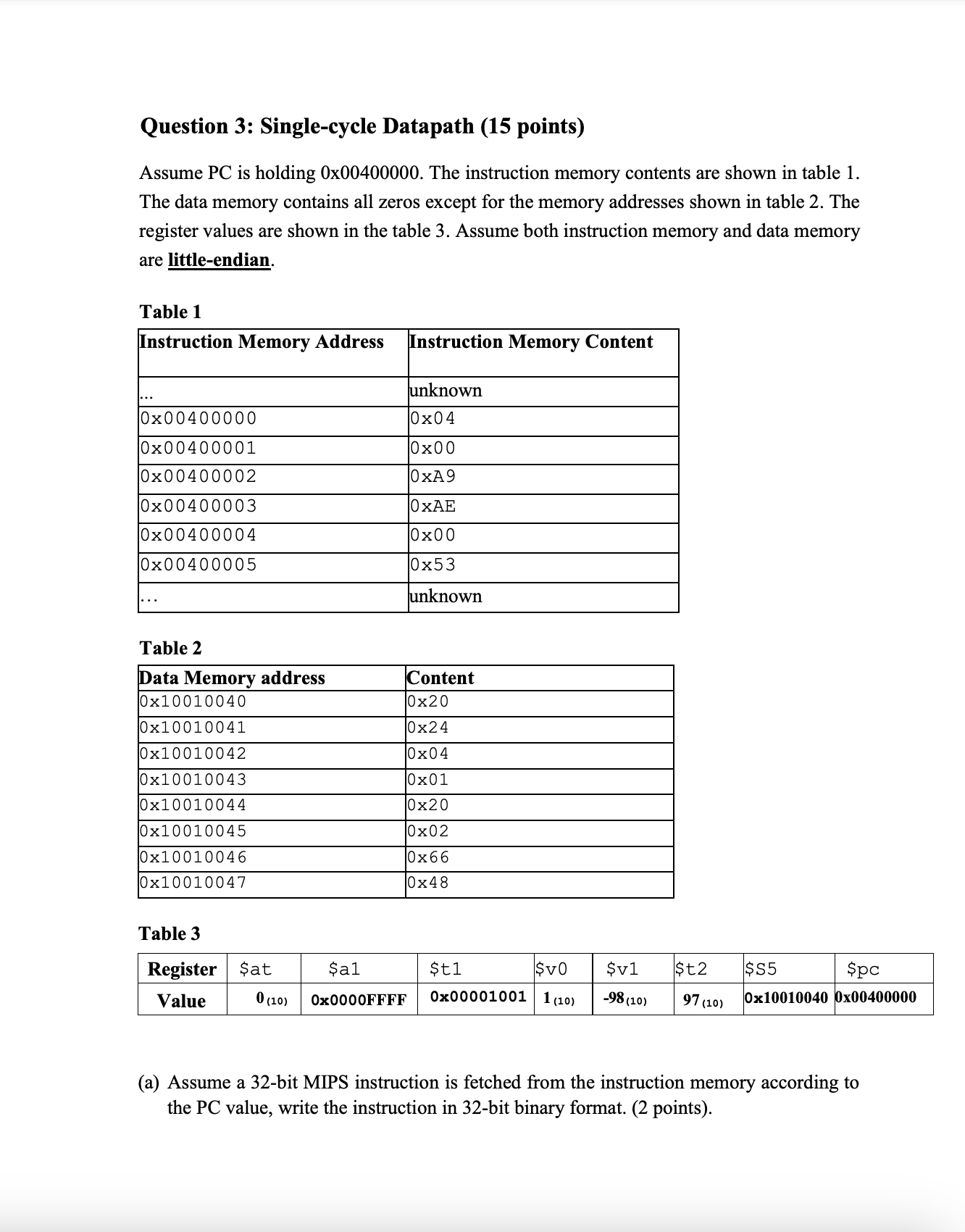

Assume PC is holding $0$x$00400000.$ The instruction memory contents are shown in table $1.$

The data memory contains all zeros except for the memory addresses shown in table $2.$ The

register values are shown in the table $3.$ Assume both instruction memory and data memory

are little$-$endian.

Table $1$

Table $2$

Table $3$

$($a$)$ Assume a $32-$bit MIPS instruction is fetched from the instruction memory according to

the $PC$ value, write the instruction in $32-$bit binary format. $(2$ points$).$
