Question: ( b ) Figure 2 shows a 3 - D force vector with three forces acting on the top of a screw eye. The sum

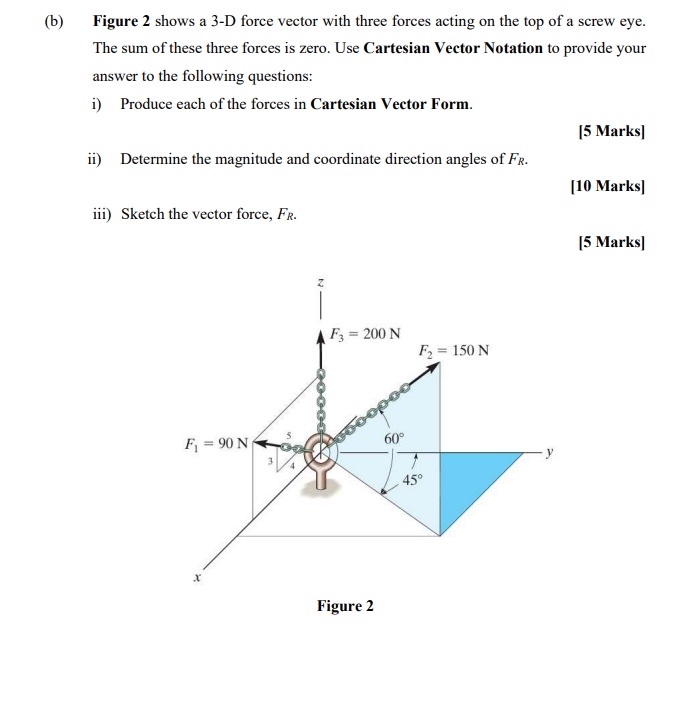

(b) Figure 2 shows a 3-D force vector with three forces acting on the top of a screw eye. The sum of these three forces is zero. Use Cartesian Vector Notation to provide your answer to the following questions:
i) Produce each of the forces in Cartesian Vector Form.
[5 Marks]
ii) Determine the magnitude and coordinate direction angles of FR.
[10 Marks]
iii) Sketch the vector force, FR.
[5 Marks]
( b ) Figure 2 shows a 3 - D force vector with

Step by Step Solution

There are 3 Steps involved in it
