Question: B . Problem assignments: Please ignore the first 2 structures show. Im only intrested in the 3 rd structure. Thank you For the beams shown

.

Problem assignments: Please ignore the first

2

structures show. Im only intrested in the

3

rd structure. Thank you

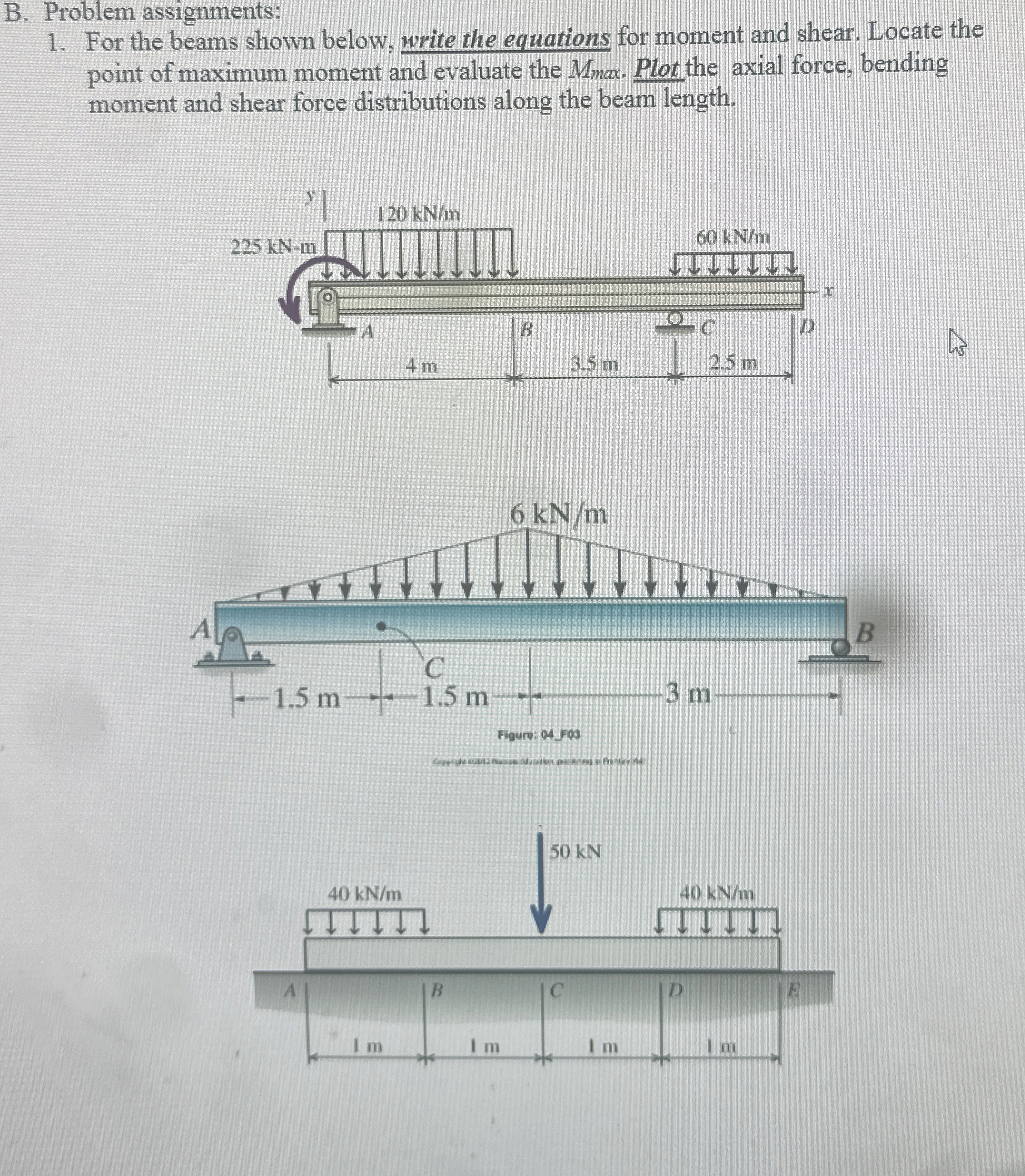

For the beams shown below, write the equations for moment and shear. Locate the point of maximum moment and evaluate the Mmax. Plot the axial force, bending moment and shear force distributions along the beam length.

Figure:

04_

Fos

B . Problem assignments: Please ignore the first

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
