Question: ( b ) Two spur gears are used in a gear train system as shown below. Gear 1 rotates at 4 0 0 rpm and

(b) Two spur gears are used in a gear train system as shown below. Gear 1 rotates at 400 rpm and has 40 teeth. Gear two has 160 teeths. If the module is 3.0 mm , find the speed of Gear 2 and the center distance between the shafts.

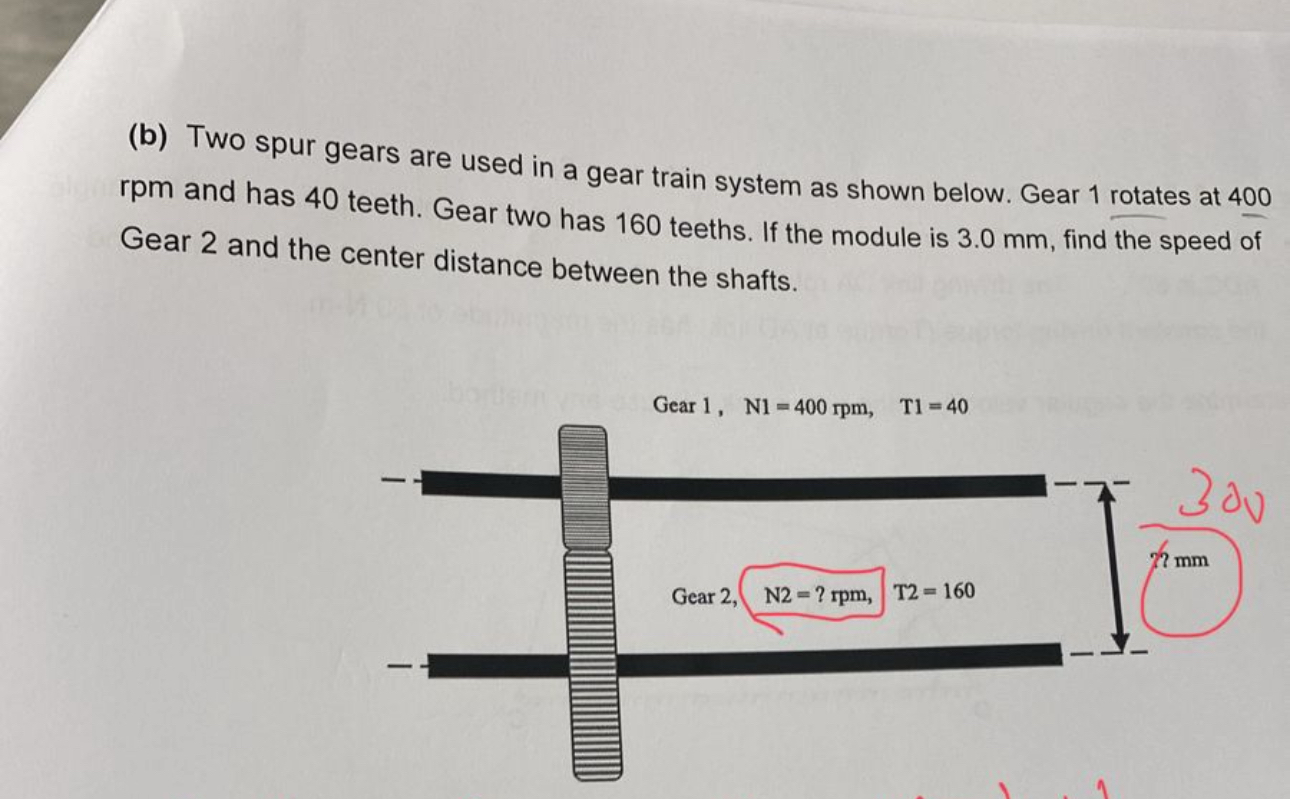

Gear 1,Nl=400rpm,Tl=40
( b ) Two spur gears are used in a gear train

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
