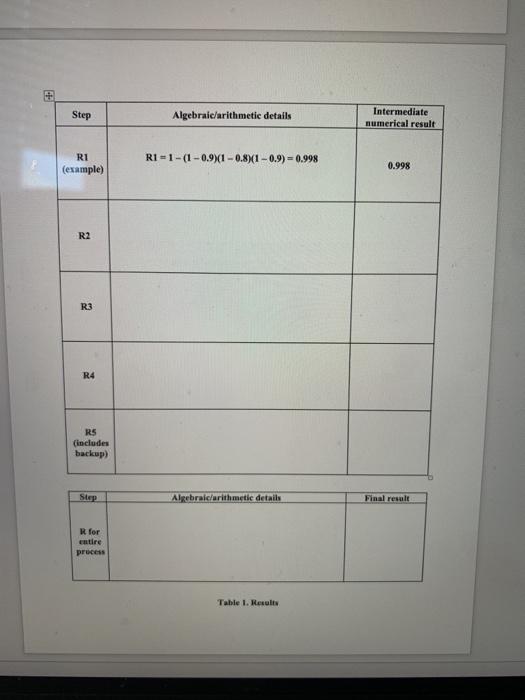

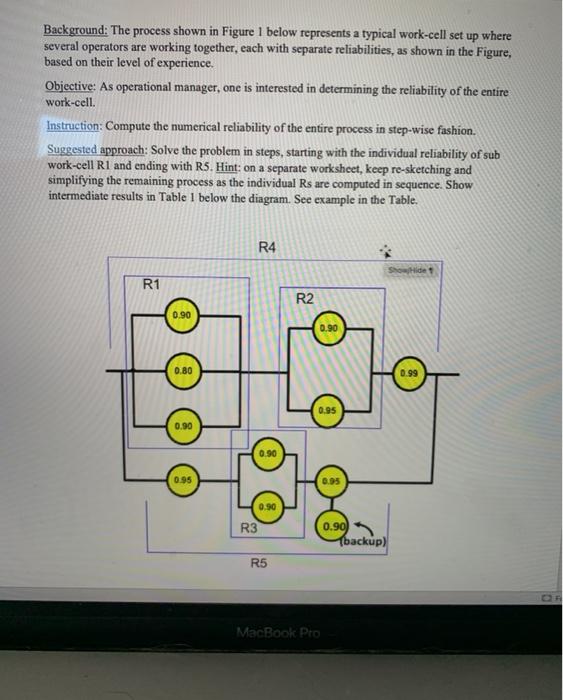

Background: The process shown in Figure 1 below represents a typical work-cell set up where several operators are working together, each with separate reliabilities, as shown in the Figure, based on their level of experience. Objective: As operational manager, one is interested in determining the reliability of the entire work-cell. Instruction: Compute the numerical reliability of the entire process in step-wise fashion. Suggested approach: Solve the problem in steps, starting with the individual reliability of sub work-cell R1 and ending with R5. Hint: on a separate worksheet, keep re-sketching and simplifying the remaining process as the individual Rs are computed in sequence. Show intermediate results in Table 1 below the diagram. See example in the Table. R4 Showide R1 R2 0.90 0.90 0.80 0.99 0.95 0.90 0.90 0.95 0.95 0.90 R3 0.90) (backup) R5 MacBook Pro Step Algebraic/arithmetic details Intermediate numerical result RI (example) R1 - 1 - (1 -0.91 -0.8)(1 -0.9) - 0.998 0.998 R2 R3 R4 R5 includes backup) Step Algebraicarithmetic details Final result R for entire process Table 1. Results
