Balance the assembly line shown below for (a) a shift output of 50 pieces and (b)...

Transcribed Image Text:

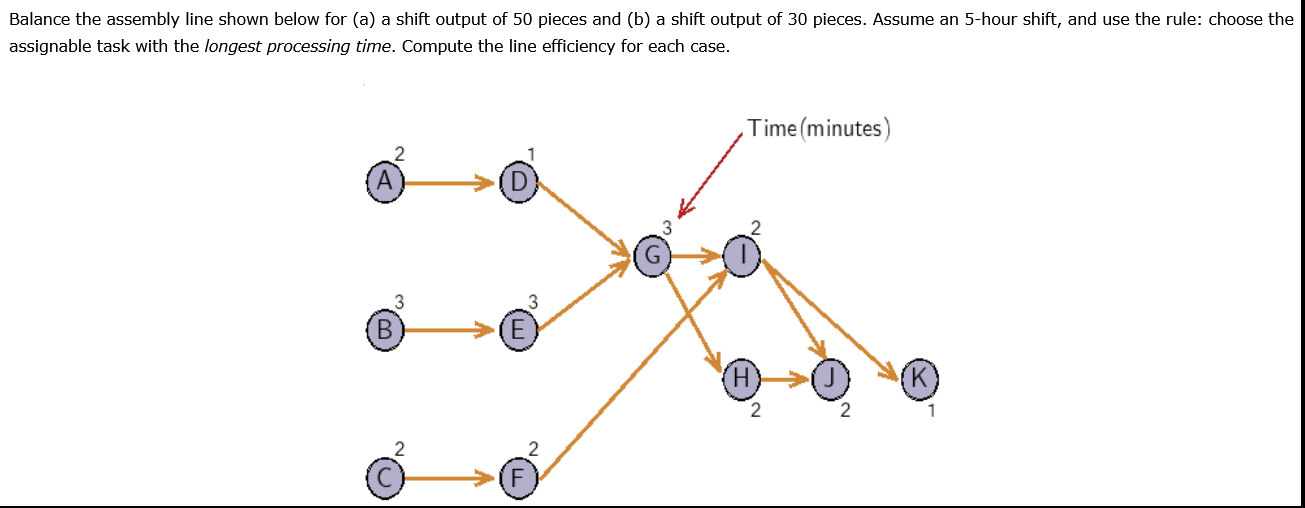

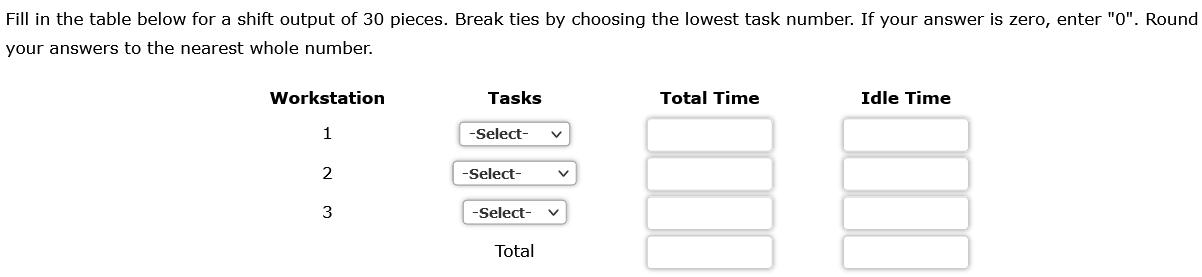

Balance the assembly line shown below for (a) a shift output of 50 pieces and (b) a shift output of 30 pieces. Assume an 5-hour shift, and use the rule: choose the assignable task with the longest processing time. Compute the line efficiency for each case. A 2 (D) B 3 E H (C) (F) Time (minutes) J (K) 2 What is the assembly-line efficiency? Round your answer to one decimal place. % Fill in the table below for a shift output of 30 pieces. Break ties by choosing the lowest task number. If your answer is zero, enter "0". Round your answers to the nearest whole number. Workstation Tasks 1 -Select- 2 -Select- 3 -Select- Total Total Time Idle Time What is the assembly-line efficiency? Round your answer to one decimal place. % Balance the assembly line shown below for (a) a shift output of 50 pieces and (b) a shift output of 30 pieces. Assume an 5-hour shift, and use the rule: choose the assignable task with the longest processing time. Compute the line efficiency for each case. A 2 (D) B 3 E H (C) (F) Time (minutes) J (K) 2 What is the assembly-line efficiency? Round your answer to one decimal place. % Fill in the table below for a shift output of 30 pieces. Break ties by choosing the lowest task number. If your answer is zero, enter "0". Round your answers to the nearest whole number. Workstation Tasks 1 -Select- 2 -Select- 3 -Select- Total Total Time Idle Time What is the assembly-line efficiency? Round your answer to one decimal place. %
