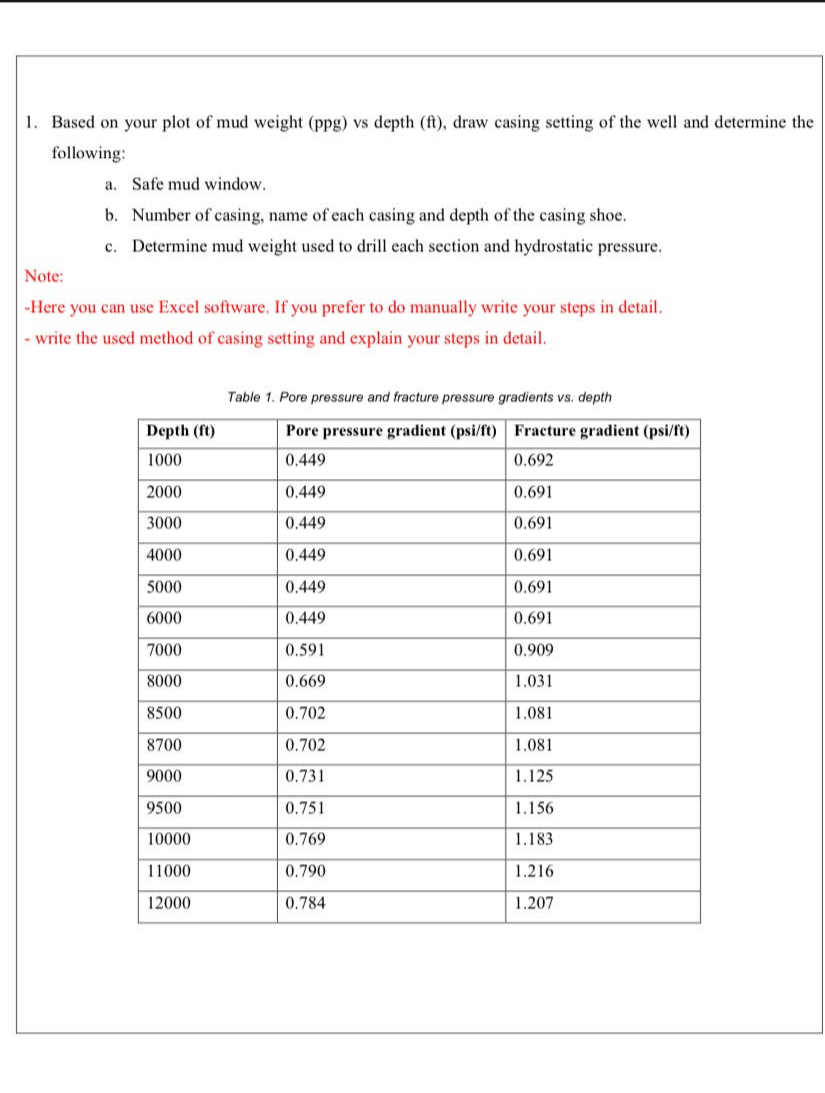

Based on your plot of mud weight $($ppg$)$ vs depth $(ft),$ draw casing setting of the well and determine the following:

a$.$ Safe mud window.

b$.$ Number of casing, name of each casing and depth of the casing shoe.

c$.$ Determine mud weight used to drill each section and hydrostatic pressure.

Note:

$-$Here you can use Excel software. If you prefer to do manually write your steps in detail.

write the used method of casing setting and explain your steps in detail.

Table $1.$ Pore pressure and fracture pressure gradients vs$.$ depth

$\backslash$table$[[$Depth $($ft$),$Pore pressure gradient $($psi$/$ft$),$Fracture gradient $($psi$/$ft$)],[1000,0\mathrm{.}449,0\mathrm{.}692],[2000,0\mathrm{.}449,0\mathrm{.}691],[3000,0\mathrm{.}449,0\mathrm{.}691],[4000,0\mathrm{.}449,0\mathrm{.}691],[5000,0\mathrm{.}449,0\mathrm{.}691],[6000,0\mathrm{.}449,0\mathrm{.}691],[7000,0\mathrm{.}591,0\mathrm{.}909],[8000,0\mathrm{.}669,1\mathrm{.}031],[8500,0\mathrm{.}702,1\mathrm{.}081],[8700,0\mathrm{.}702,1\mathrm{.}081],[9000,0\mathrm{.}731,1\mathrm{.}125],[9500,0\mathrm{.}751,1\mathrm{.}156],[10000,0\mathrm{.}769,1\mathrm{.}183],[11000,0\mathrm{.}790,1\mathrm{.}216],[12000,0\mathrm{.}784,1\mathrm{.}207]]$
