Basic Definitions

Diversified demand

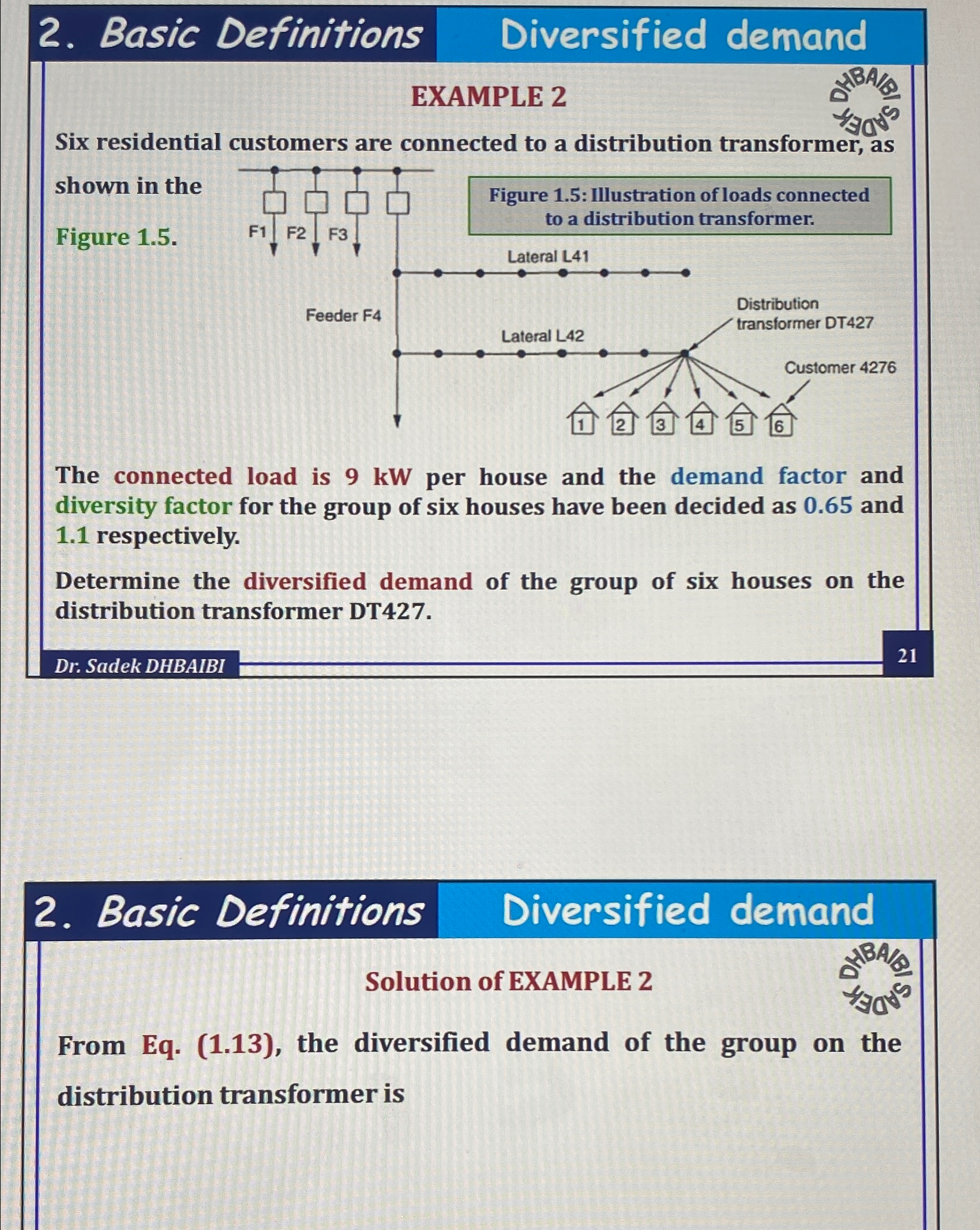

EXAMPLE $2$

Six residential customers are connected to a distribution transformer, as shown in the Figure $1\mathrm{.}5.$

The connected load is $9kW$ per house and the demand factor and diversity factor for the group of six houses have been decided as $0\mathrm{.}65$ and $1\mathrm{.}1$ respectively.

Determine the diversified demand of the group of six houses on the distribution transformer DT$427.$

Dr: Sadek DHBAIBI

$21$

$2.$ Basic Definitions

Diversified demand

Solution of EXAMPLE $2$

From Eq$.(1\mathrm{.}13),$ the diversified demand of the group on the distribution transformer is
