Question: Be declare, an ICT will have 9 task or activities (A to K), see the table. Task: 1. Draw a network diagram of the project

Be declare, an ICT will have 9 task or activities (A to K), see the table. Task: 1. Draw a network diagram of the project plan (with data in the table), using the AOA diagram. 2. Also draw a network diagram of the project plan, using the AON diagram. Compare the results. 3. Identify and determine the critical path 4. Calculate how long the project will take?

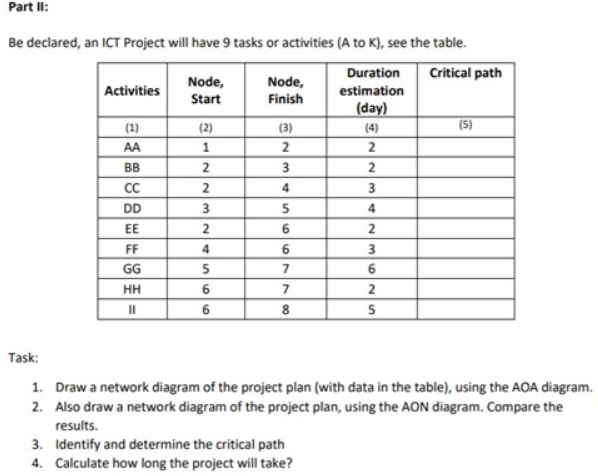

Part II: 1 Be declared, an ICT Project will have 9 tasks or activities (A to K), see the table. Critical path Node, Duration Activities Node, estimation Start Finish (day) (1) (2) (3) (4) (5) AA 2 2 BB 2 3 2 CC 2 3 DD 3 5 EE 2 6 2 FF 6 3 GG 5 7 6 HH 6 7 2 6 8 5 4 4 4 N00 Task: 1. Draw a network diagram of the project plan (with data in the table), using the ADA diagram. 2. Also draw a network diagram of the project plan, using the AON diagram. Compare the results. 3. Identify and determine the critical path 4. Calculate how long the project will take
