Question: blem 3 ( 2 0 points ) . For the given beam with constant E I , answer the questions using Conjugate Beam Method: 9

blem 3(20 points). For the given beam with constant EI, answer the questions using Conjugate Beam Method:
9k

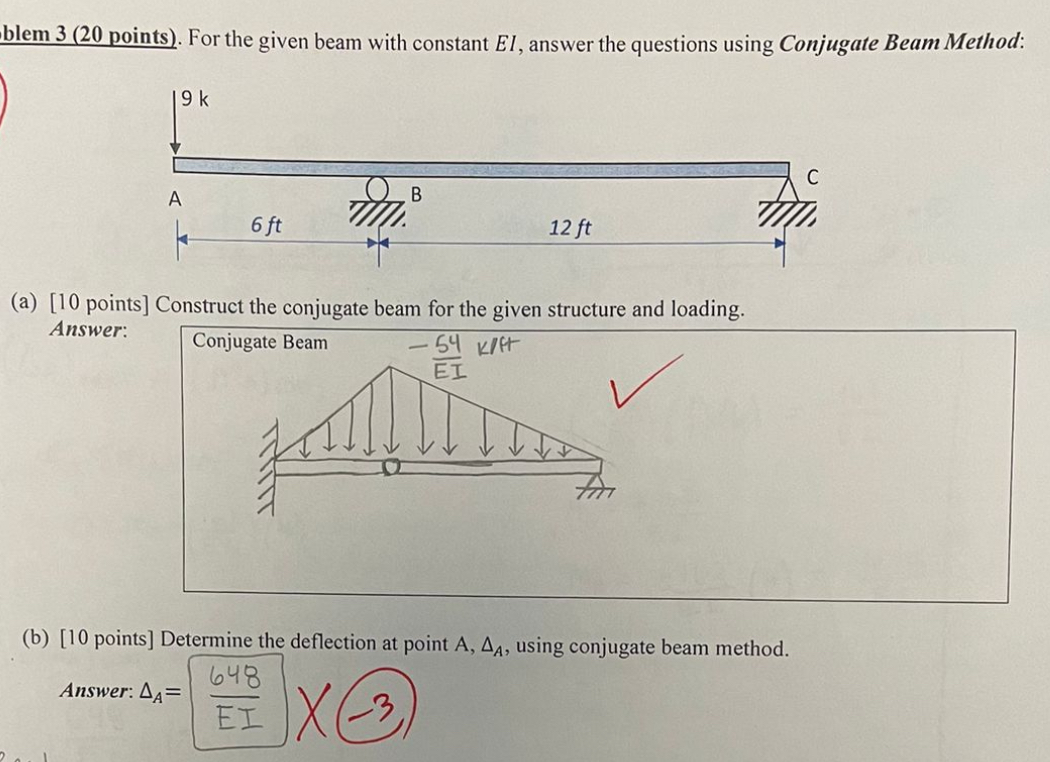

(a)[10 points] Construct the conjugate beam for the given structure and loading. Answer:
(b)[10 points
blem 3 ( 2 0 points ) . For the given beam with

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
