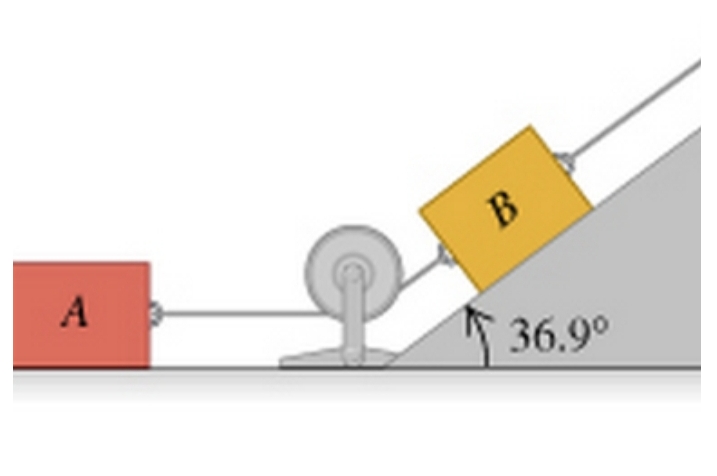

Question: Blocks A, B, and C are placed as in the figure and connected by ropes of negligible mass. Both A and B weigh 25.0 N

Blocks A, B, and C are placed as in the figure and connected by ropes of negligible mass. Both A and B weigh 25.0 N each, and the coefficient of kinetic friction between each block and the surface is 0.35. Block C descends with constant velocity. Draw two separate free-body diagrams showing the forces acting on A and on B.

A 36.90

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
