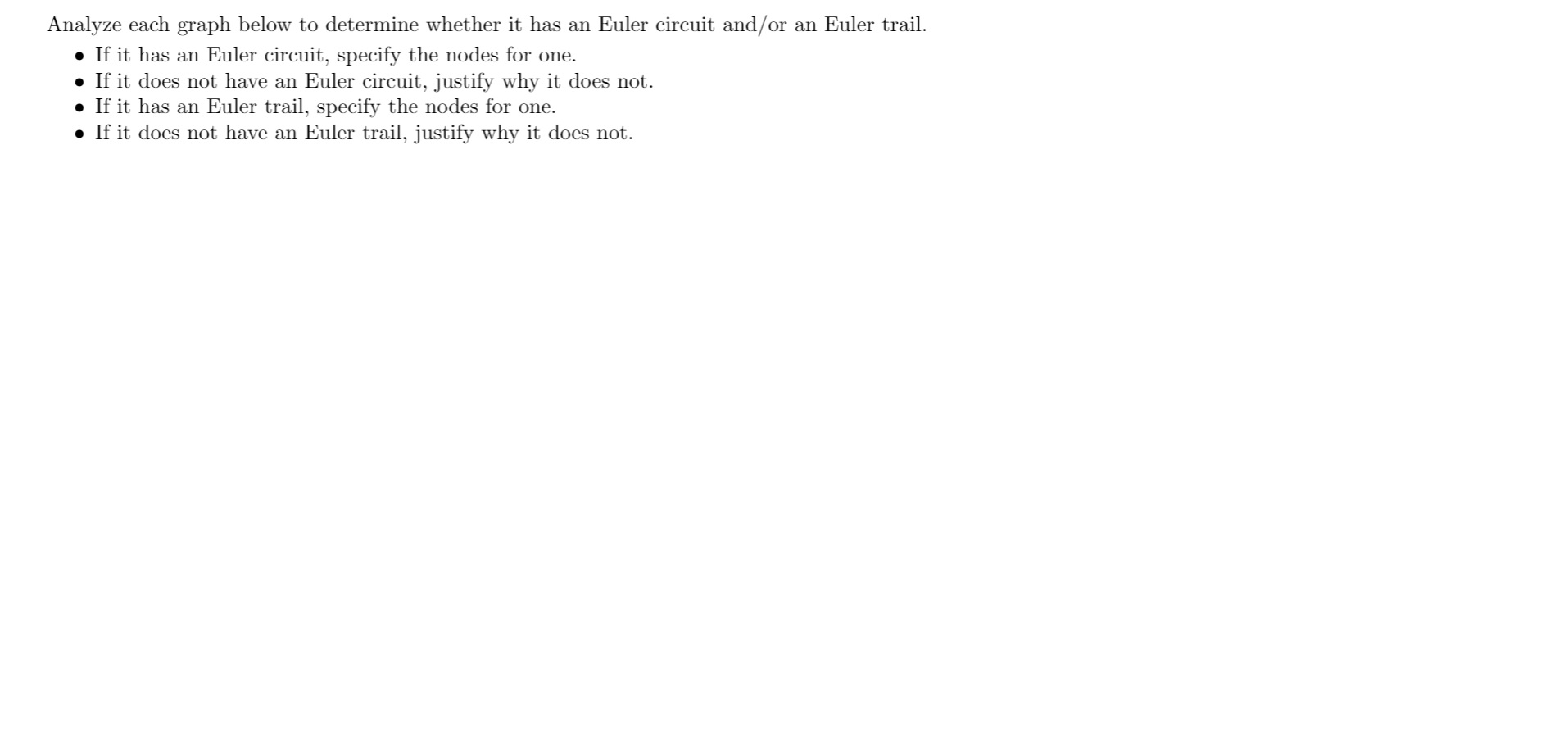

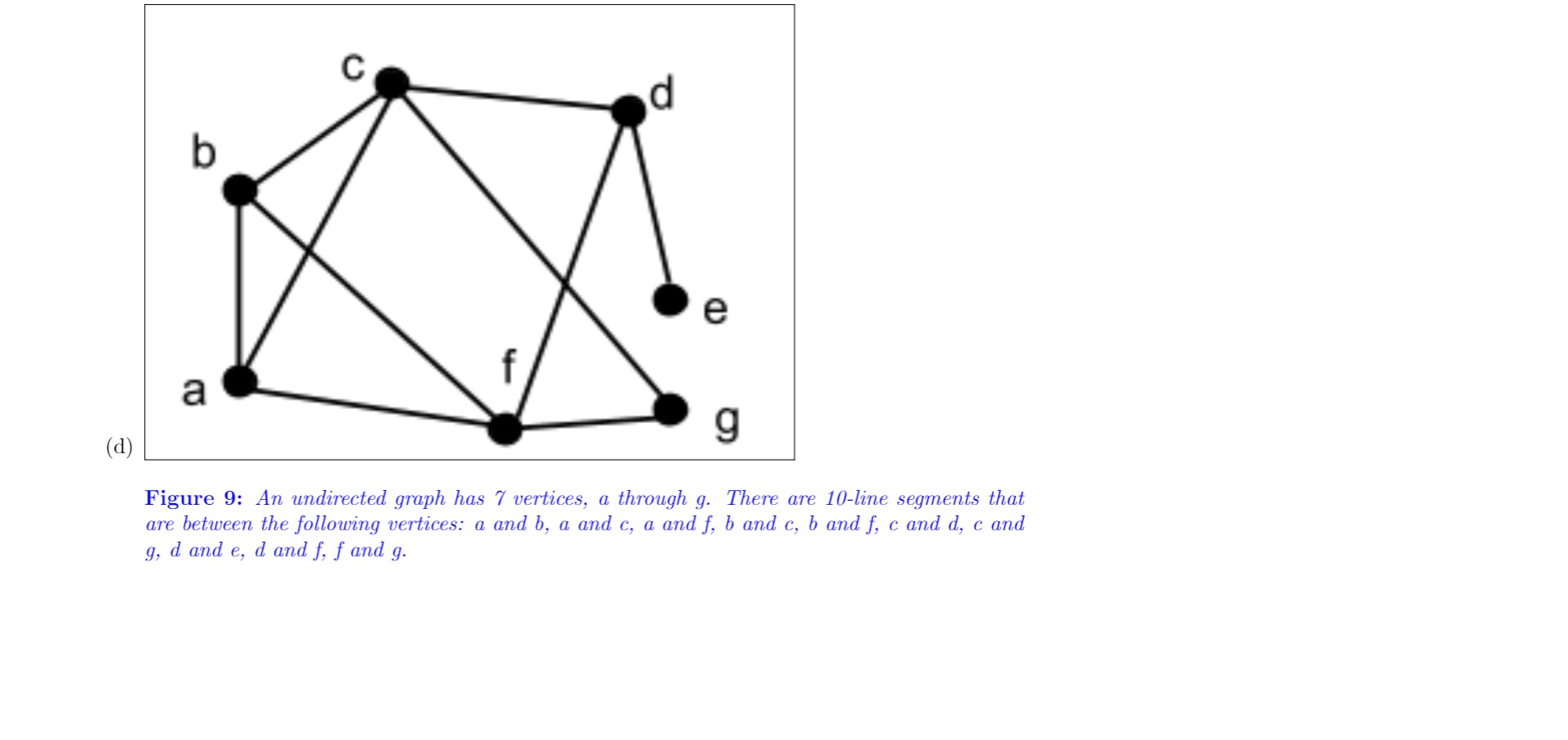

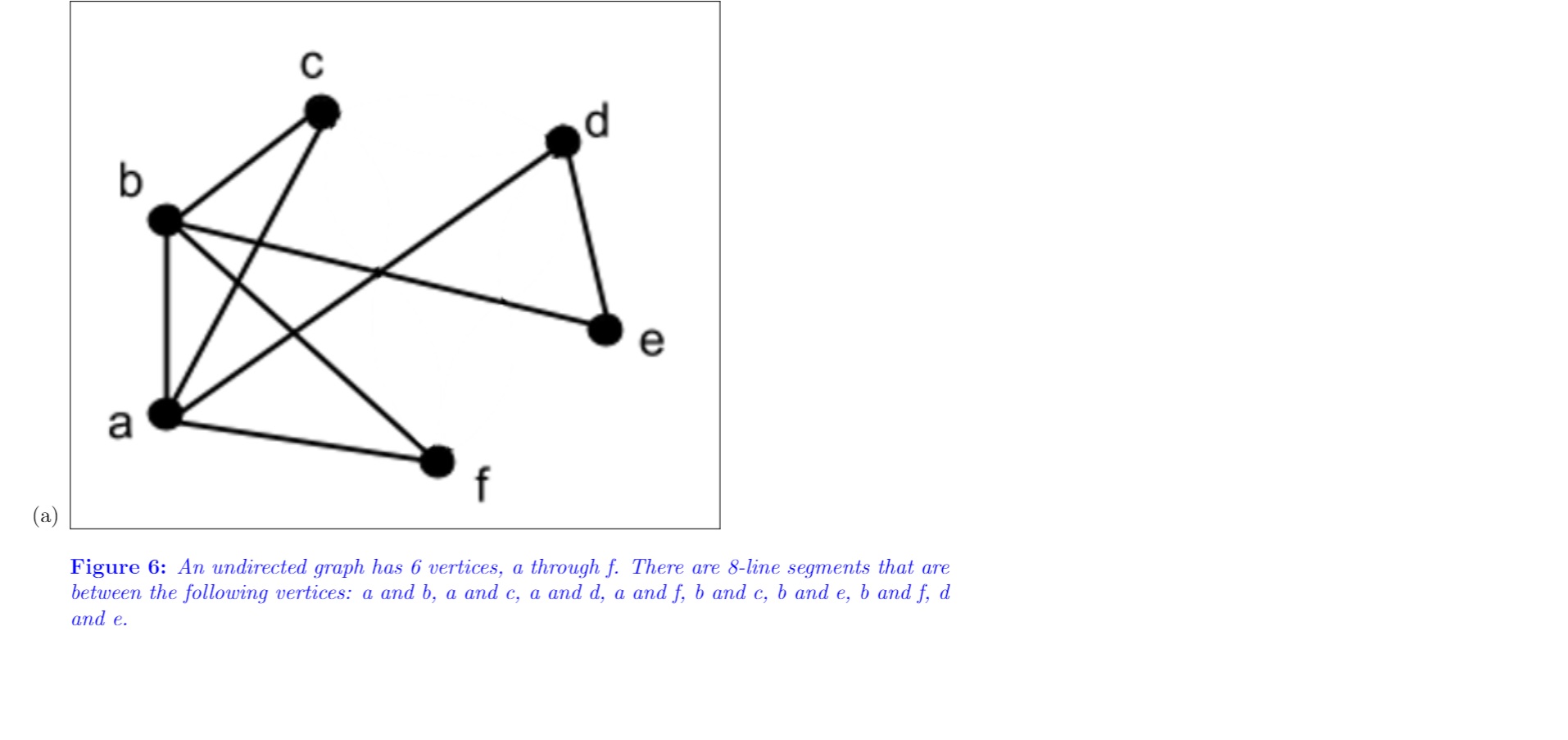

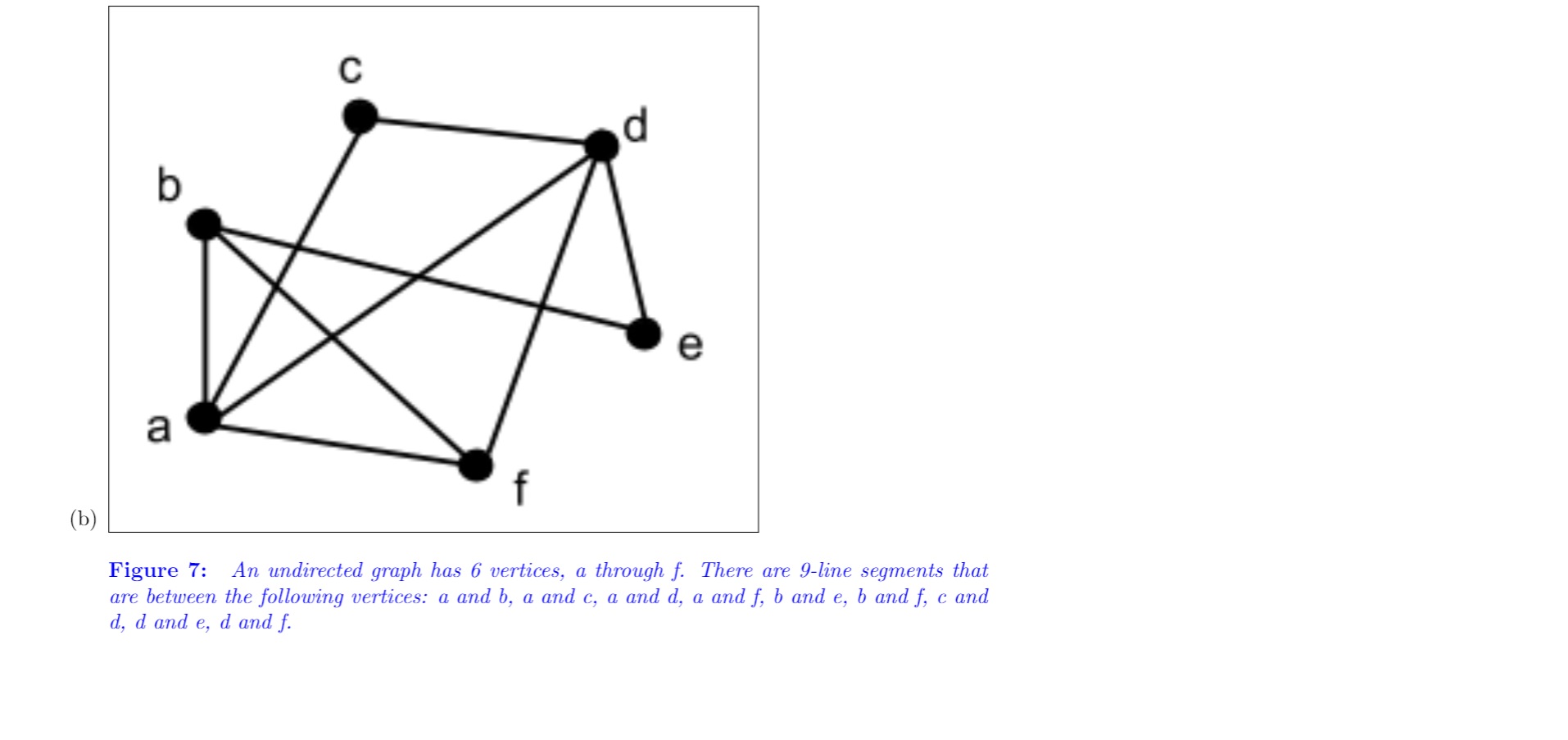

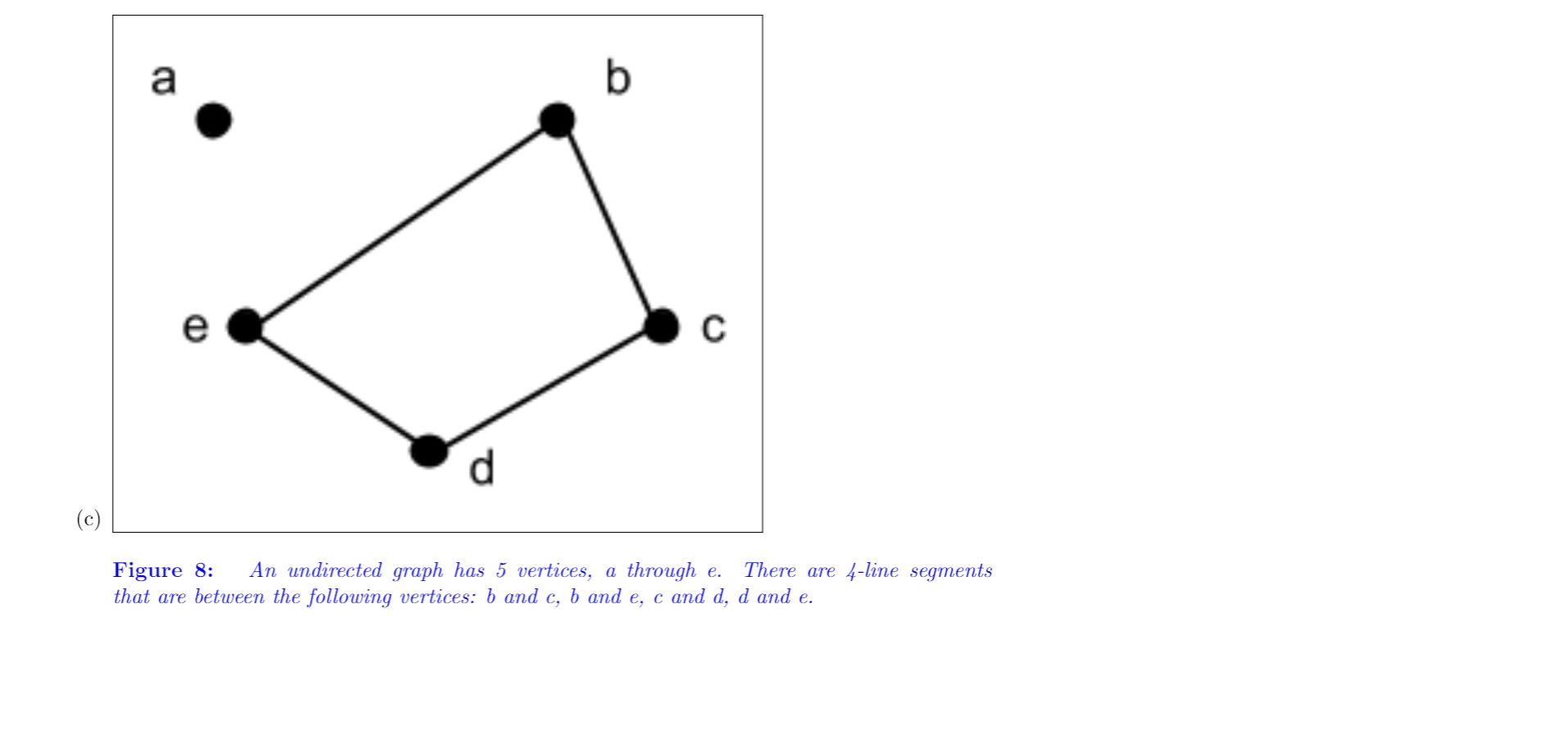

C b e a (a) Figure 6: An undirected graph has 6 vertices, a through f. There are 8-line segments that are between the following vertices: a and b, a and c, a and d, a and f, b and c, b and e, b and f, d and e.C d b e a (b) Figure 7: An undirected graph has 6 vertices, a through f. There are 9-line segments that are between the following vertices: a and b, a and c, a and d, a and f, b and e, b and f, c and d, d and e, d and f.a b e C (c Figure 8: An undirected graph has 5 vertices, a through e. There are 4-line segments that are between the following vertices: b and c, b and e, c and d, d and e.C d b e a (d) g Figure 9: An undirected graph has 7 vertices, a through g. There are 10-line segments that are between the following vertices: a and b, a and c, a and f, b and c, b and f, c and d, c and g, d and e, d and f, f and g.Analyze each graph below to determine whether it has an Euler circuit and/ or an Euler trail. a If it has an Euler circuit, specify the nodes for one. o If it does not. have an Euler circuit, justify why it does not. a If it has an Euler trail, specify the nodes for one. o If it does not. have an Euler trail, justify why it does not
