$($c$)$ Consider the layered soil as shown in the Figure Q$4\mathrm{.}1$ and both the

properties of the soil layers and ground water level. Calculate and plot

the effective vertical stress and effective horizontal stress in the middle

of the clay layer and at $13m$ below the ground surface.

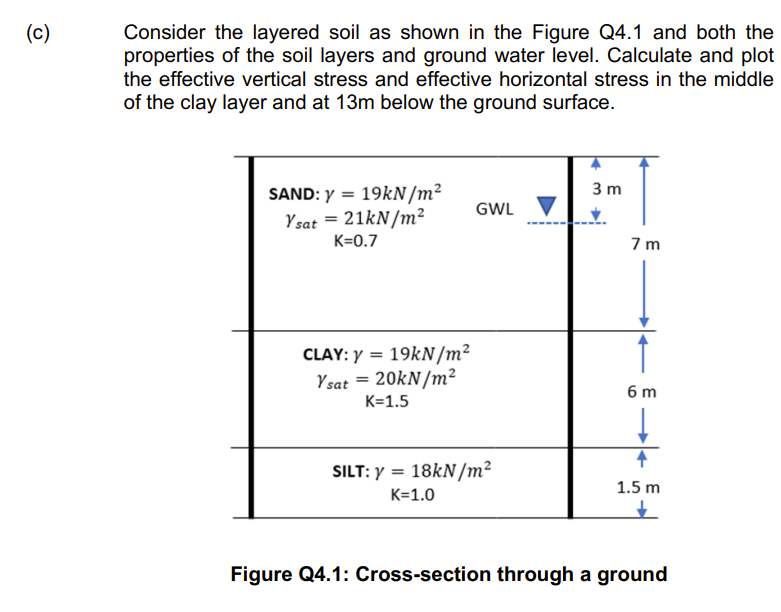

Figure Q$4\mathrm{.}1$: Cross$-$section through a ground
