Question: ( c ) Design the combinational logic for the function F using a 2 - to - 1 multiplexer. ( 2 pt ) Q 3

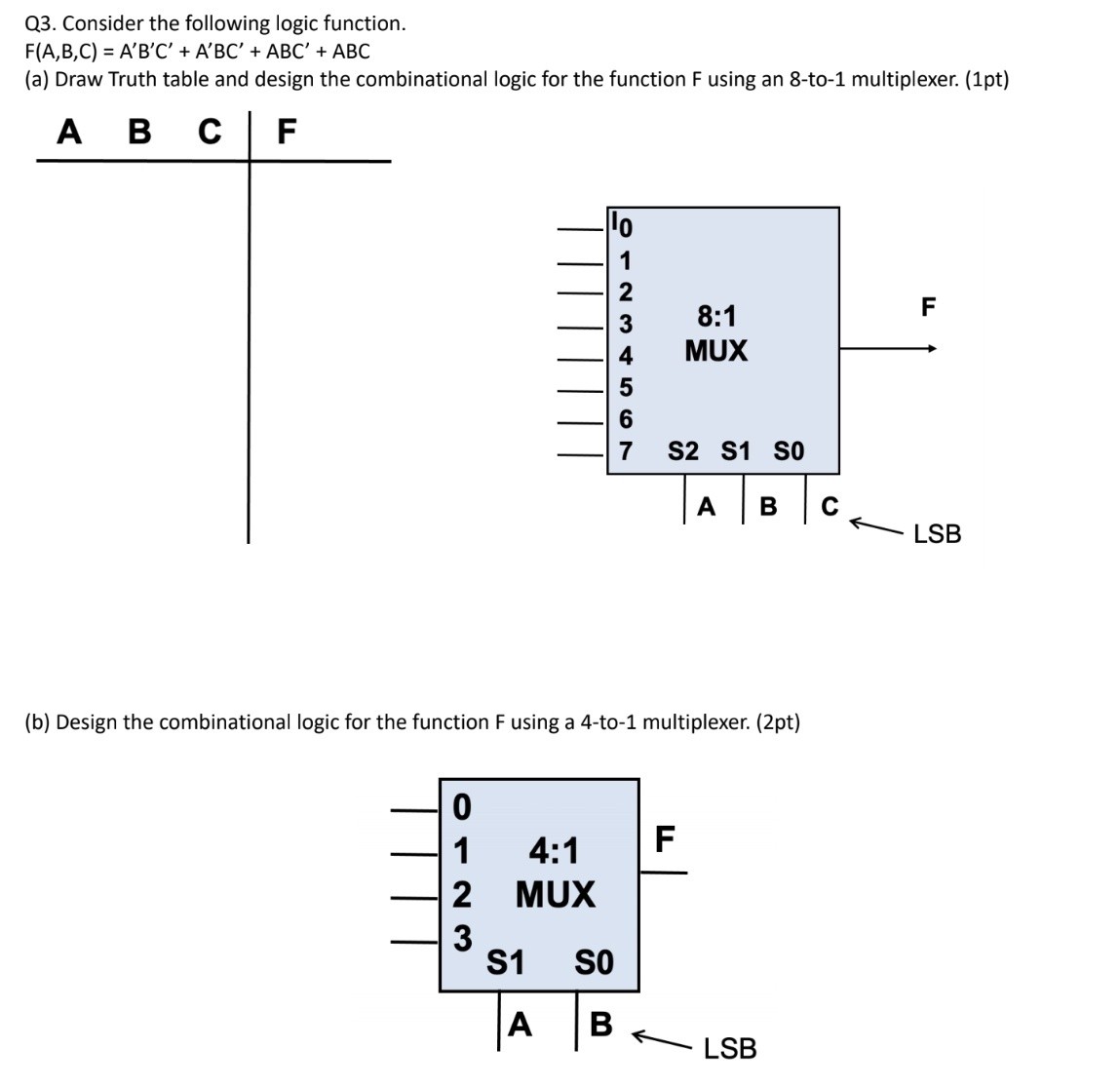

(c) Design the combinational logic for the function F using a 2-to-1 multiplexer. (2pt)Q3. Consider the following logic function.
F(A,B,C)=A'B'C'+A'BC'+ABC'+ABC
(a) Draw Truth table and design the combinational logic for the function F using an 8-to-1 multiplexer. (1pt)
(b) Design the combinational logic for the function F using a 4-to-1 multiplexer. (2pt)
 (c) Design the combinational logic for the function F using a

Step by Step Solution

There are 3 Steps involved in it
