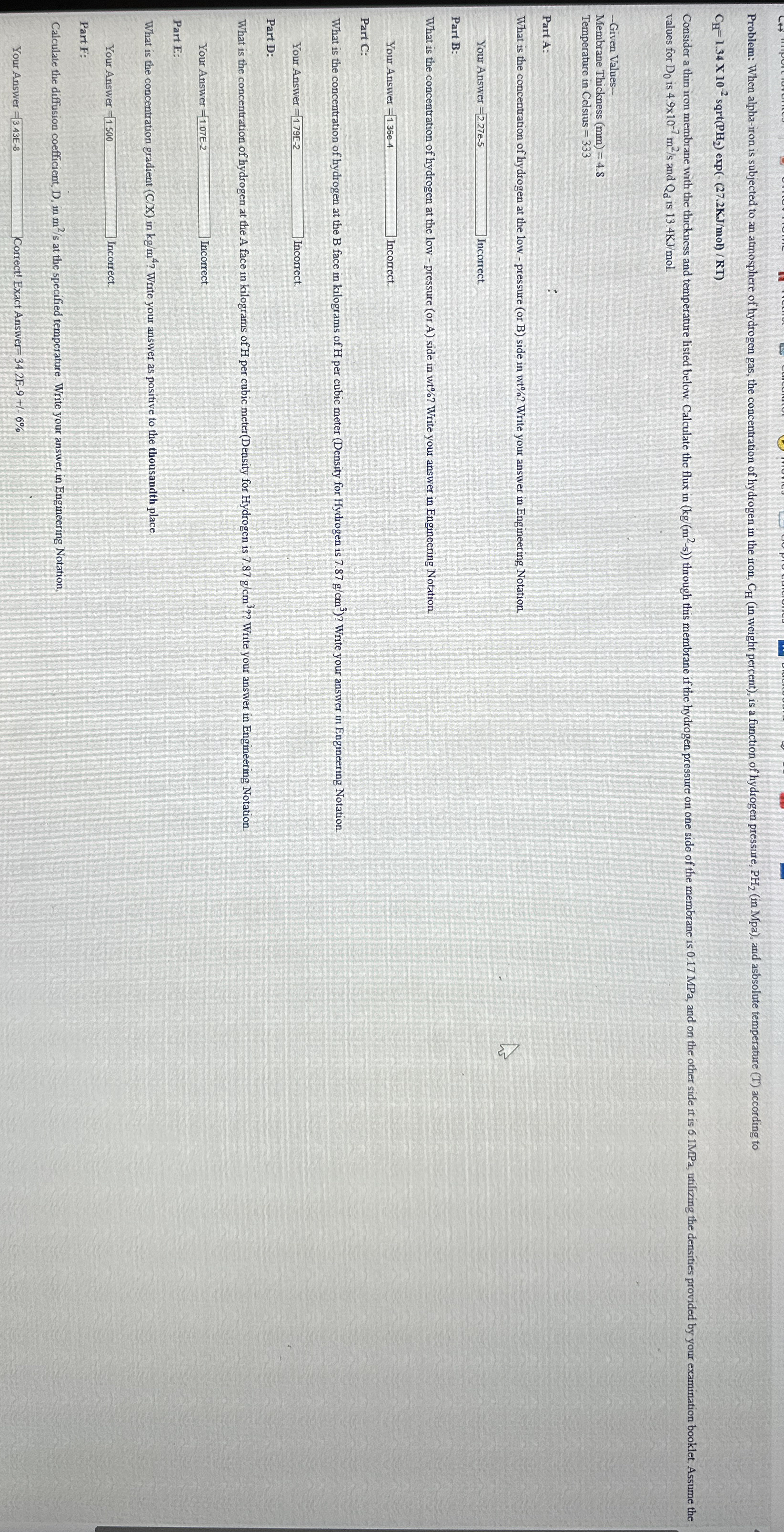

$C_H=1\mathrm{.}34{10}^{-2}\sqrt[\phantom{2}]{P{H}_2}$exp$(-\frac{27\mathrm{.}2K\frac{J}{m}ol}{R}T)$

values for $D_0$ is $4\mathrm{.}9{10}^{-7}\frac{m^2}{s}$ and $Q_d$ is $13\mathrm{.}4K\frac{J}{m}ol$

$-$Given Values$-$

Membrane Thickness $(mm)=4\mathrm{.}8$

Temperature in Celsius $=333$

Part A:

What is the concentration of hydrogen at the low $-$ pressure $($or B$)$ side in wt $\%?$ Write your answer in Engineering Notation.

Your Answer

Incorrect.

Part B:

What is the concentration of hydrogen at the low $-$ pressure $($or A $)$ side in wt $\%?$ Write your answer in Engineering Notation.

Your Answer $=$

Incorrect.

Part C:

What is the concentration of hydrogen at the B face in kilograms of H per cubic meter $($Density for Hydrogen is $7\mathrm{.}87\frac{g}{c}{m}^3)?$ Write your answer in Engineering Notation.

Your Answer $=$

Incorrect.

Part D:

What is the concentration of hydrogen at the A face in kilograms of H per cubic meter$($Density for Hydrogen is $7\mathrm{.}87\frac{g}{c}{m}^3??$ Write your answer in Engineering Notation.

Your Answe

Incorrect

Part E:

What is the concentration gradient $(\frac{C}{x})$ in $k\frac{g}{m^4}?$ Write your answer as positive to the thousandth place.

Your Answer $=1$

Incorrect.

Part F:

Calculate the diffusion coefficient, D $,$ in $\frac{m^2}{s}$ at the specified temperature. Write your answer, in Engineering Notation.

Your Answer $=$
