Question: SEAT Nos. 1 - 1 0 : Determine the absolute velocity of point x in inch ? s e c and Wdra d s e

SEAT Nos. 1-10:

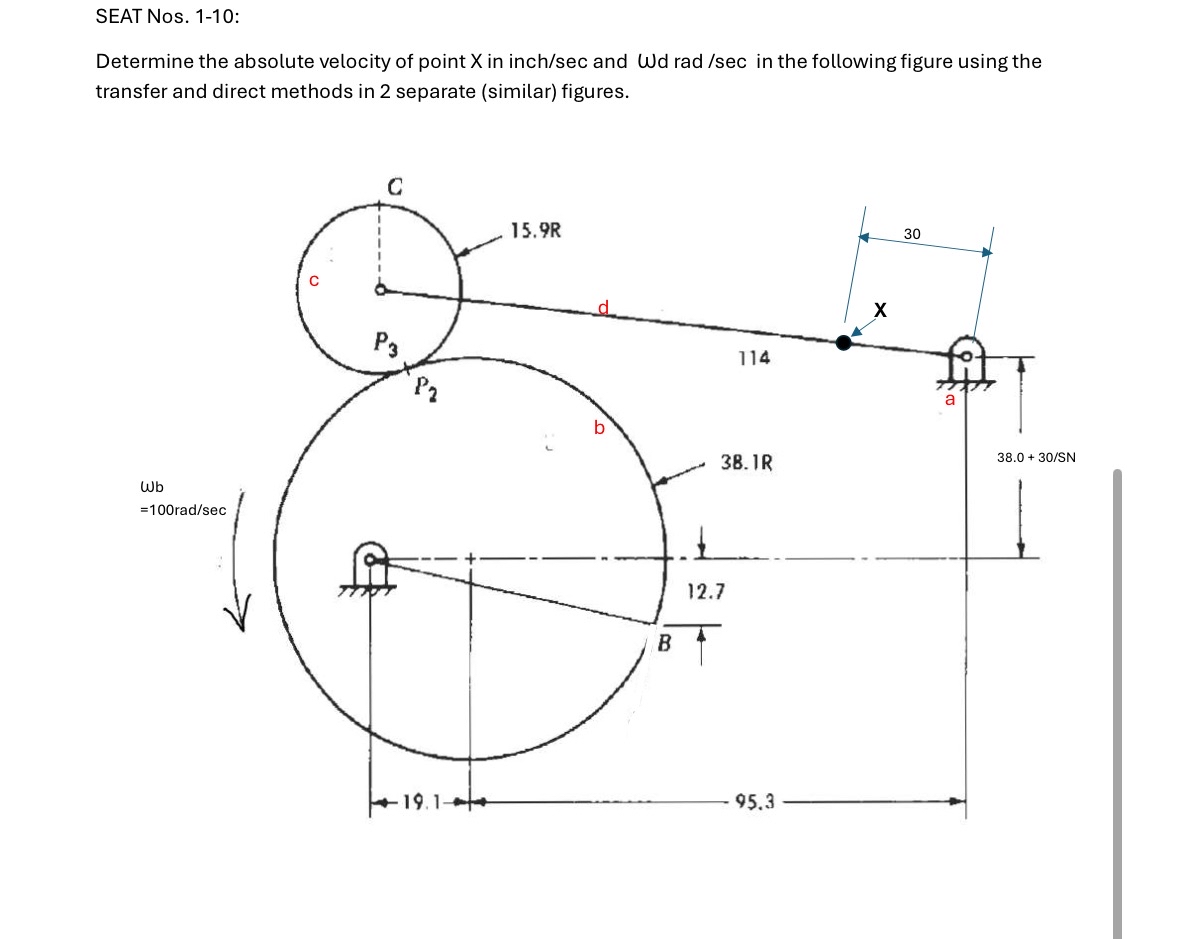

Determine the absolute velocity of point x in inch ?sec and Wdradsec in the following figure using the transfer and direct methods in 2 separate (similar) figures. USE GRAPHICAL METHOD IN DOING THE TRANSFER AND DIRECT METHOD. dimensions are in MM and SN is 2
SEAT Nos. 1 - 1 0 : Determine the absolute

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
