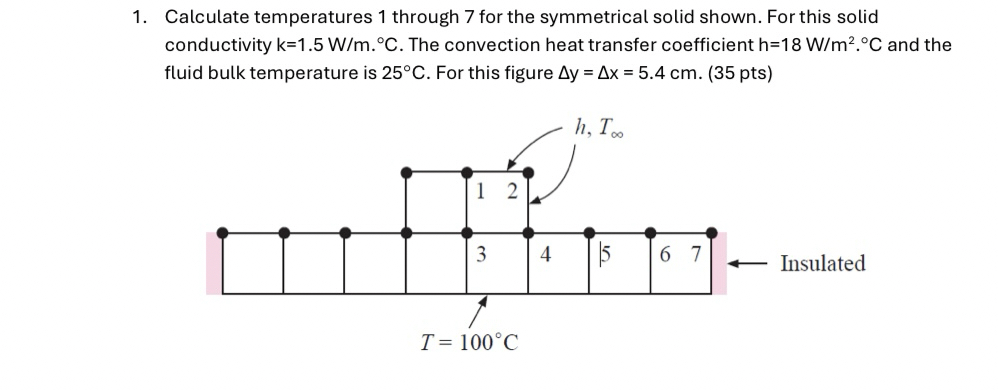

Calculate temperatures $1$ through $7$ for the symmetrical solid shown. For this solid conductivity $k=1\mathrm{.}5\frac{W}{m}.C.$ The co

Calculate temperatures $1$ through $7$ for the symmetrical solid shown. For this solid

conductivity $k=1\mathrm{.}5\frac{W}{m}.C.$ The convection heat transfer coefficient $h=18\frac{W}{m^2}.C$ and the

fluid bulk temperature is $25C.$ For this figure $y=x=5\mathrm{.}4cm.(35$ pts $)$nvection heat transfer coefficient $h=18\frac{W}{m^2}.C$ and the fluid bulk temperature is $25C.$ For this figure $y=x=5\mathrm{.}4cm.$
