Question: Can someone help with this one pls ? Determine the axial forces in members B C , C H , and H G of the

Can someone help with this one pls?

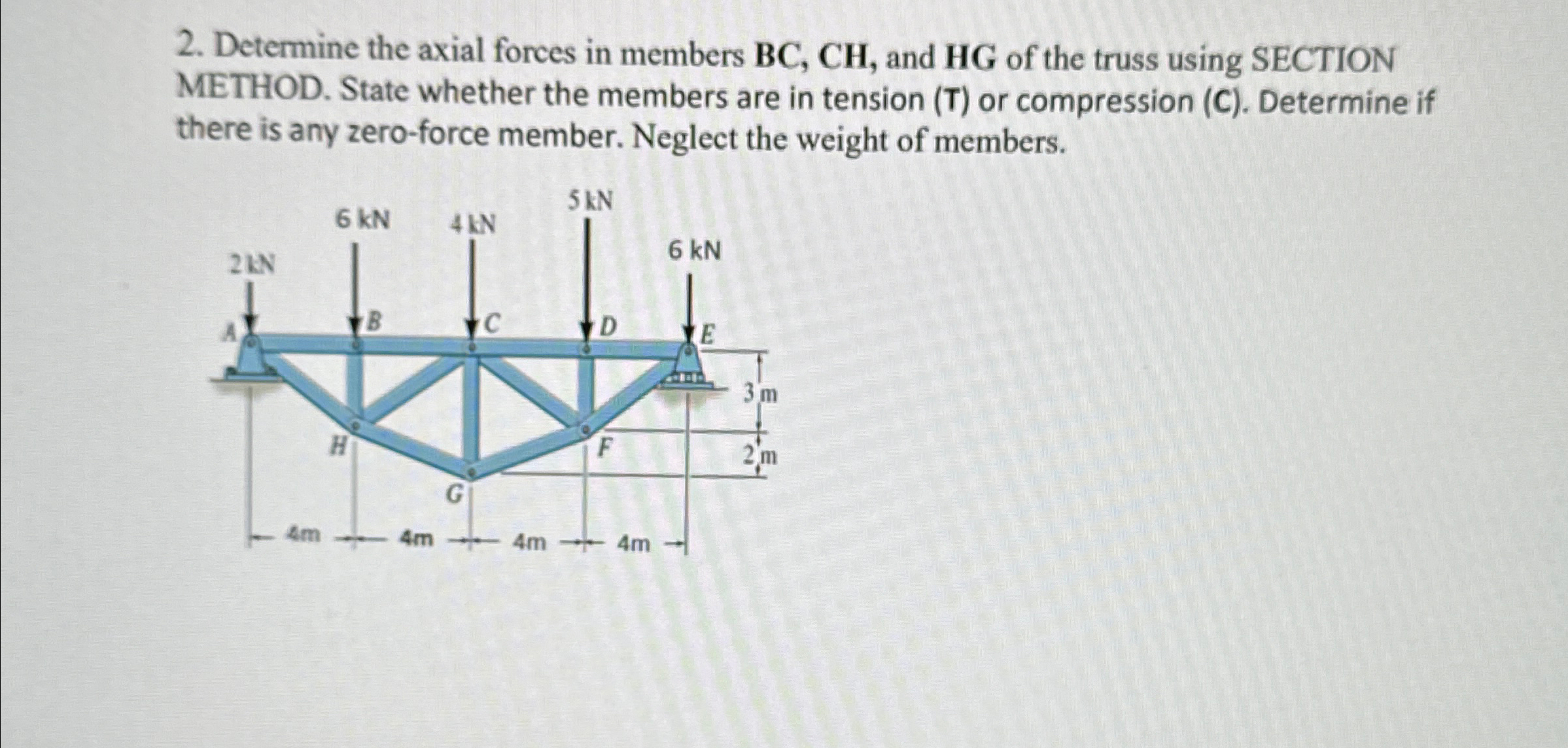

Determine the axial forces in members BC,CH, and HG of the truss using SECTION METHOD. State whether the members are in tension (T) or compression (C). Determine if there is any zero-force member. Neglect the weight of members.
Can someone help with this one pls ? Determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
