Can you help code these two problems in Arm assembly code for cortex$-$M$4.$ I have also provided the part $1$ from lab $3.$

$(25$ points$)$ Your inputs are three different word$-$length numbers that your program

will place in registers r$6-$r$8.$ Your program will be responsible for adding three $16-$bit

values that it will extract from registers as follows: low$-$order $16$ bits $($bits $0-15)$ from r$6,$

middle $16$ bits $($bits $8-23)$ from r$7,$ and high$-$order $16$ bits $($bits $16-31)$ from r$8.$ Place the

sum in register r$9.($The sum may be more than $16-$bits long.$)$ For example, if you are

given the following inputs:

r$6=0$x$31$F$1$D$1$B$9,$ r$7=0$x$9$F$46452$E$,$ r$8=0$x$0$C$82$B$182$

then the sum stored in $r9$ should be sum of the values shown in bold above, that is$,$ the

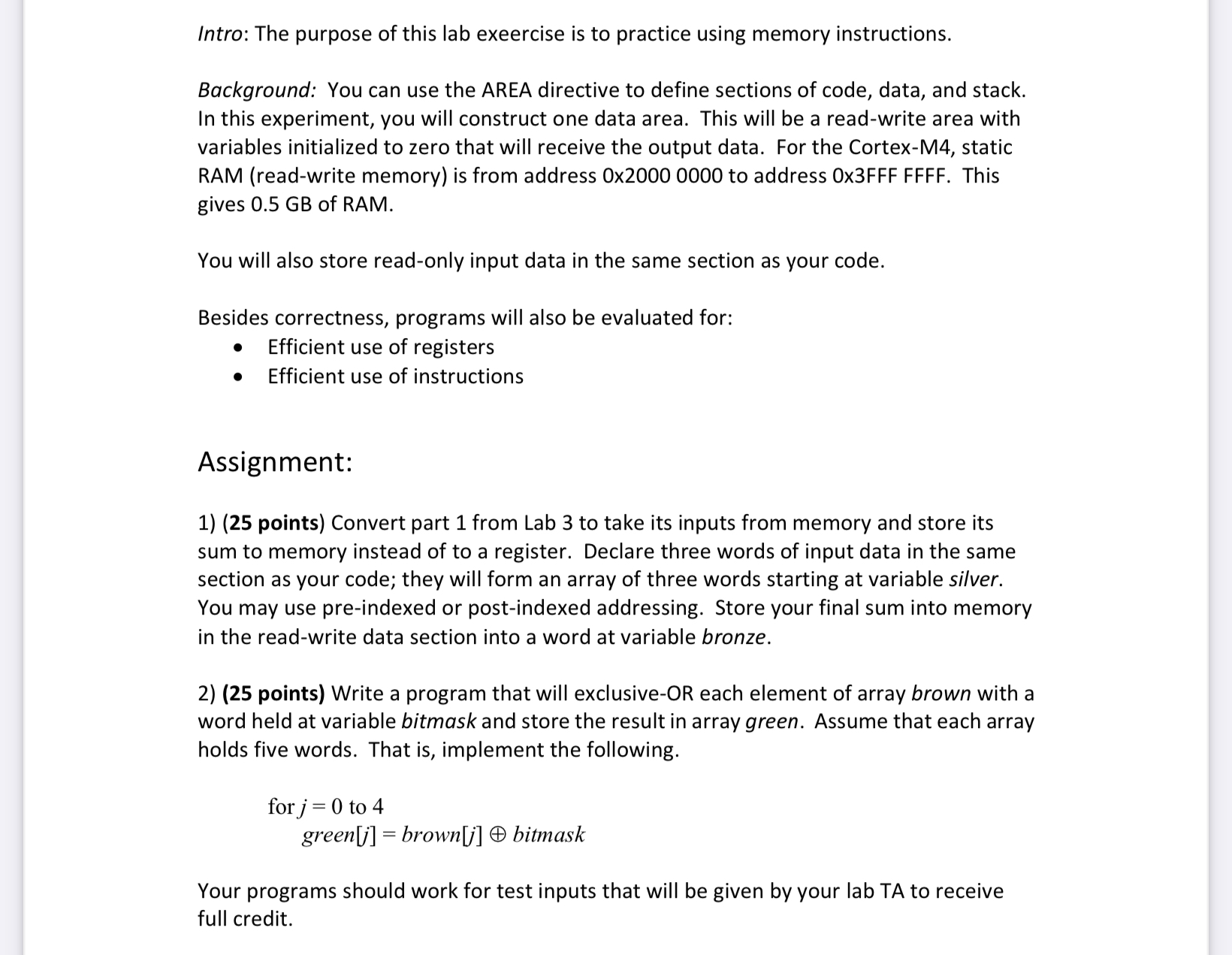

sum of $0$ D$1$B$9,04645,$ and $0C_{82}.$ This sum is $000012480.$ that Intro: The purpose of this lab exeercise is to practice using memory instructions.

Background: You can use the AREA directive to define sections of code, data, and stack.

In this experiment, you will construct one data area. This will be a read$-$write area with

variables initialized to zero that will receive the output data. For the Cortex$-$M$4,$ static

RAM $($read$-$write memory$)$ is from address $020000000$ to address $0$x$3$FFF FFFF$.$ This

gives $0\mathrm{.}5$ GB of RAM.

You will also store read$-$only input data in the same section as your code.

Besides correctness, programs will also be evaluated for:

Efficient use of registers

Efficient use of instructions

Assignment:

$(25$ points$)$ Convert part $1$ from Lab $3$ to take its inputs from memory and store its

sum to memory instead of to a register. Declare three words of input data in the same

section as your code; they will form an array of three words starting at variable silver.

You may use pre$-$indexed or post$-$indexed addressing. Store your final sum into memory

in the read$-$write data section into a word at variable bronze.

$(25$ points$)$ Write a program that will exclusive$-$OR each element of array brown with a

word held at variable bitmask and store the result in array green. Assume that each array

holds five words. That is$,$ implement the following.

for $j=0to4$

green $[j]=$ brown $[j]o+$ bitmask

Your programs should work for test inputs that will be given by your lab TA to receive

full credit.
