Question: Can you help me please with this task? You will need to adapt the configuration on both Newton and Einstein and configure the Heisenberg and

 Can you help me please with this task? You will need

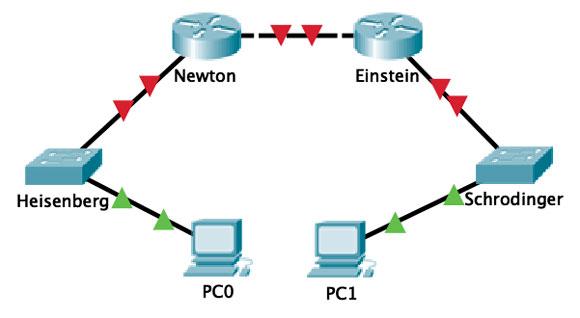

Can you help me please with this task? You will need to adapt the configuration on both Newton and Einstein and configure the Heisenberg and Schrodinger switches to complete this task. You will need to VLSM the network, to ensure that this is applied randomly and fairly. VLSM for 4 further subnets on Newton and 32 on Einstein. complete this: On Newton: Create two sub interfaces, for VLANs 10 and 20. - Enable dot1q trunking for each sub interface. Using VLSM, split 172.16.0.0/24 into (see above selection method) further subnets. VLAN 10 will be in Subnet 0, VLAN 20 will be in Subnet 1. Create suitable interface IP addresses and subnet masks to reflect this configuration requirement. On Heisenberg: Create VLANS 10 and 20, associate interfaces 6 thru 12 with VLAN 10 and associate interfaces 13 thru 18 with VLAN 20. Enable dot1q trunking for VLAN's 10 and 20 via Fa0/5. Working on PC0 as per figures 2 and 4: Connect PC0 to Fa0/6 and give it an IP address within Newton's Subnet 0, Ping from PC0 to 99.0.0.1 [Newton].
