can you help with $6$ please

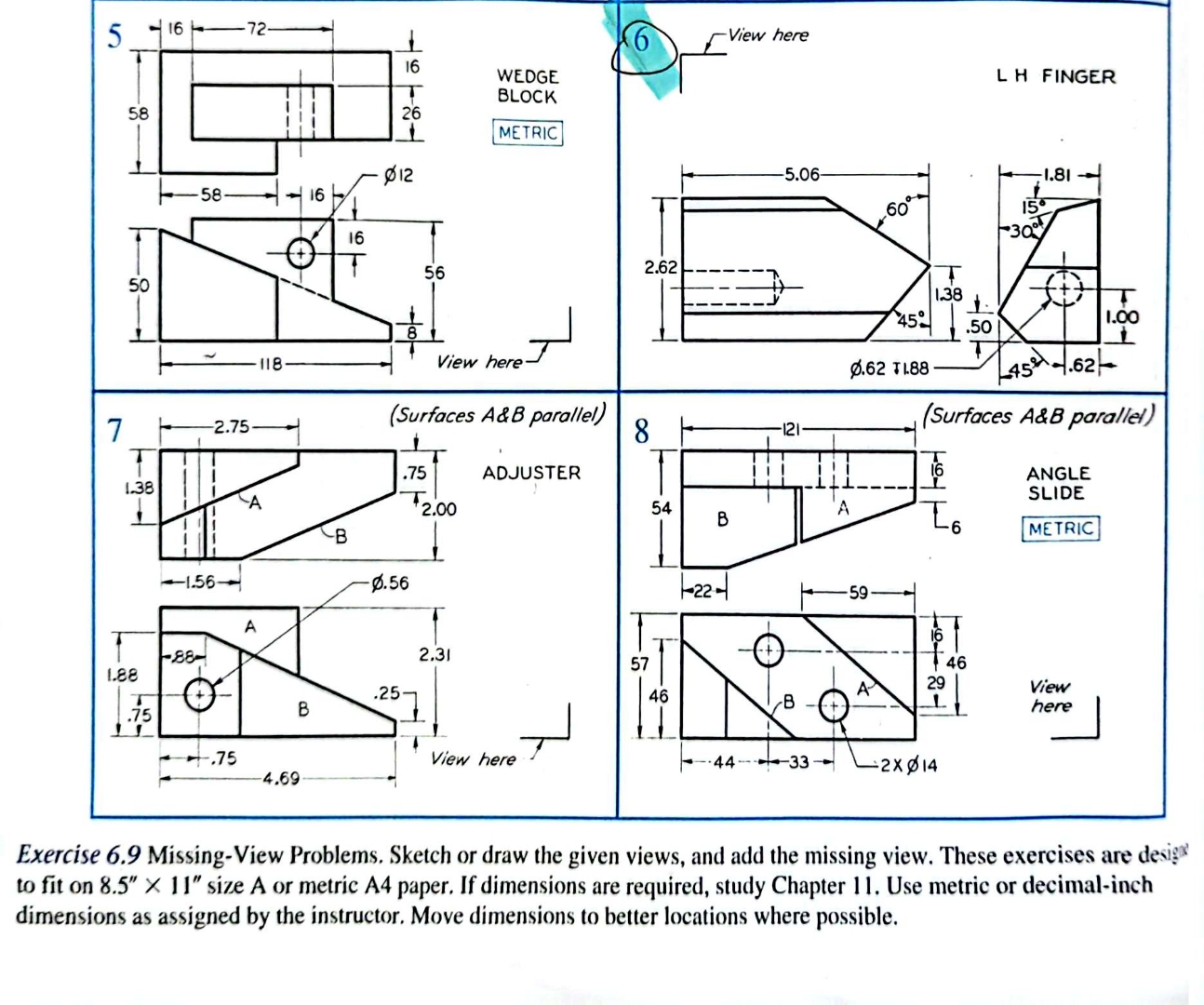

Exercise $6\mathrm{.}9$ Missing$-$View Problems. Sketch or draw the given views, and add the missing view. These exercises are desigy

to fit on ${8\mathrm{.}5}^{\text{'}\text{'}}{11}^{\text{'}\text{'}}$ size A or metric A$4$ paper. If dimensions are required, study Chapter $11.$ Use metric or decimal$-$inch

dimensions as assigned by the instructor. Move dimensions to better locations where possible.
