Question: can you please do it with a = 7 b = 1 1 . Draw the total and effective stress diagrams and calculate their value

can you please do it with a=7 b=11. Draw the total and effective stress diagrams and calculate their value for the mid height of clay
(A) in the figure.

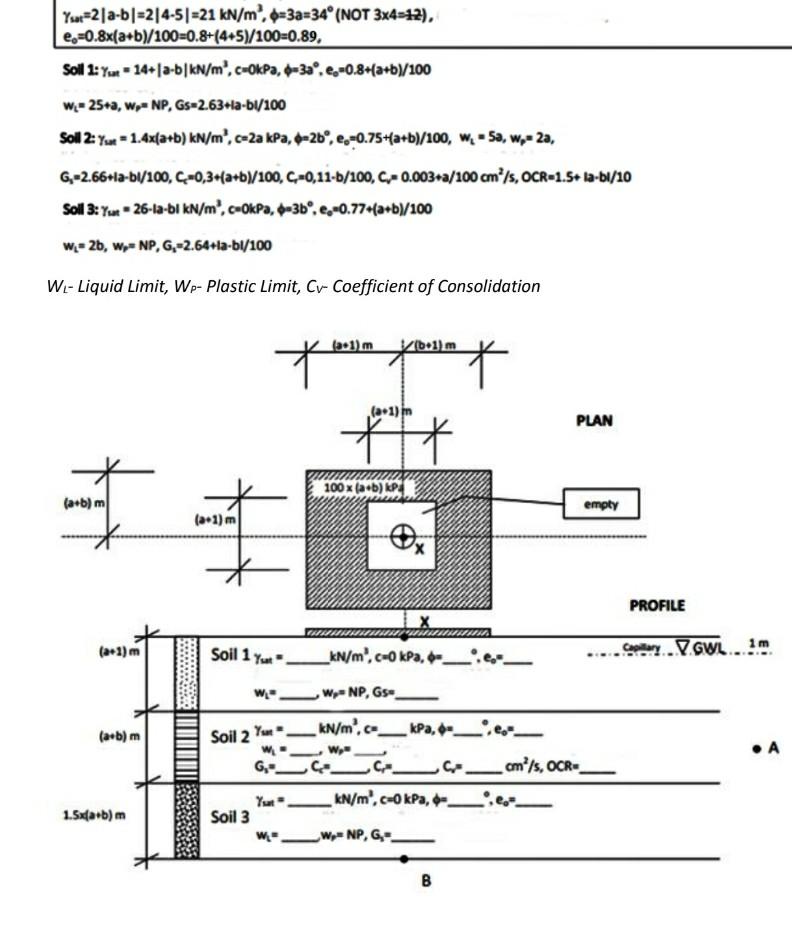

2. Find the total settlement of point X under the foundation loads given in figure.
3. If the Soil 2 is drained at both sides, how long will it take for 50% settlement to occur?
4. Calculate the horizontal stress acting on point B.?
