Question: Can you please help me . Problem 3 ( 2 0 points ) . For the given beam with constant E I , answer the

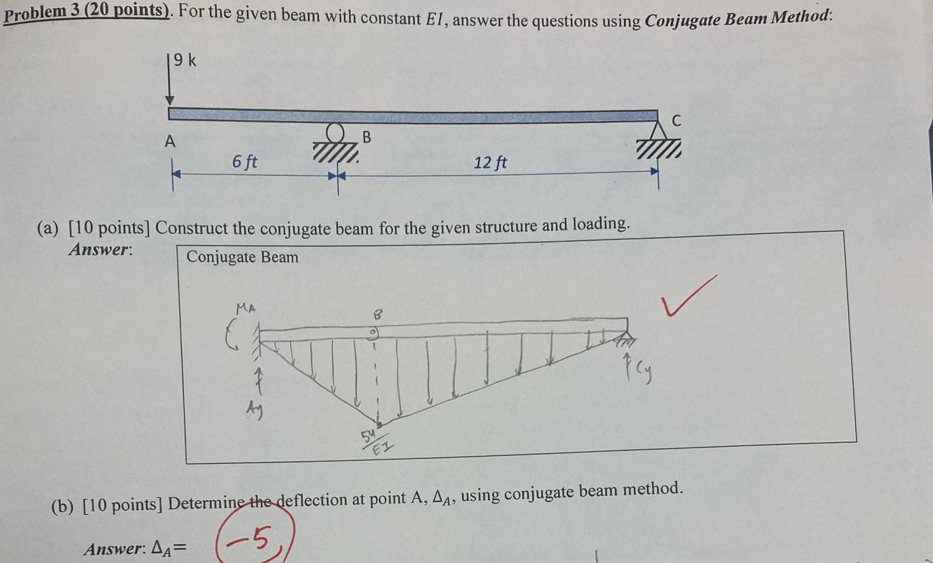

Can you please help me. Problem 3(20 points). For the given beam with constant EI, answer the questions using Conjugate Beam Method:
9k
(a)[10 points] Construct the conjugate beam for the given structure and loading.
Answer:
Coniugate Beam
(b)[10 points] Determine the deflection at point A,A, using conjugate beam method.
Answer: A=
Can you please help me . Problem 3 ( 2 0 points )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
