Question: Can you show work for each problem please? 4 ) The roof framing plan shown above supports 1 0 psf total dead load, this dead

Can you show work for each problem please?

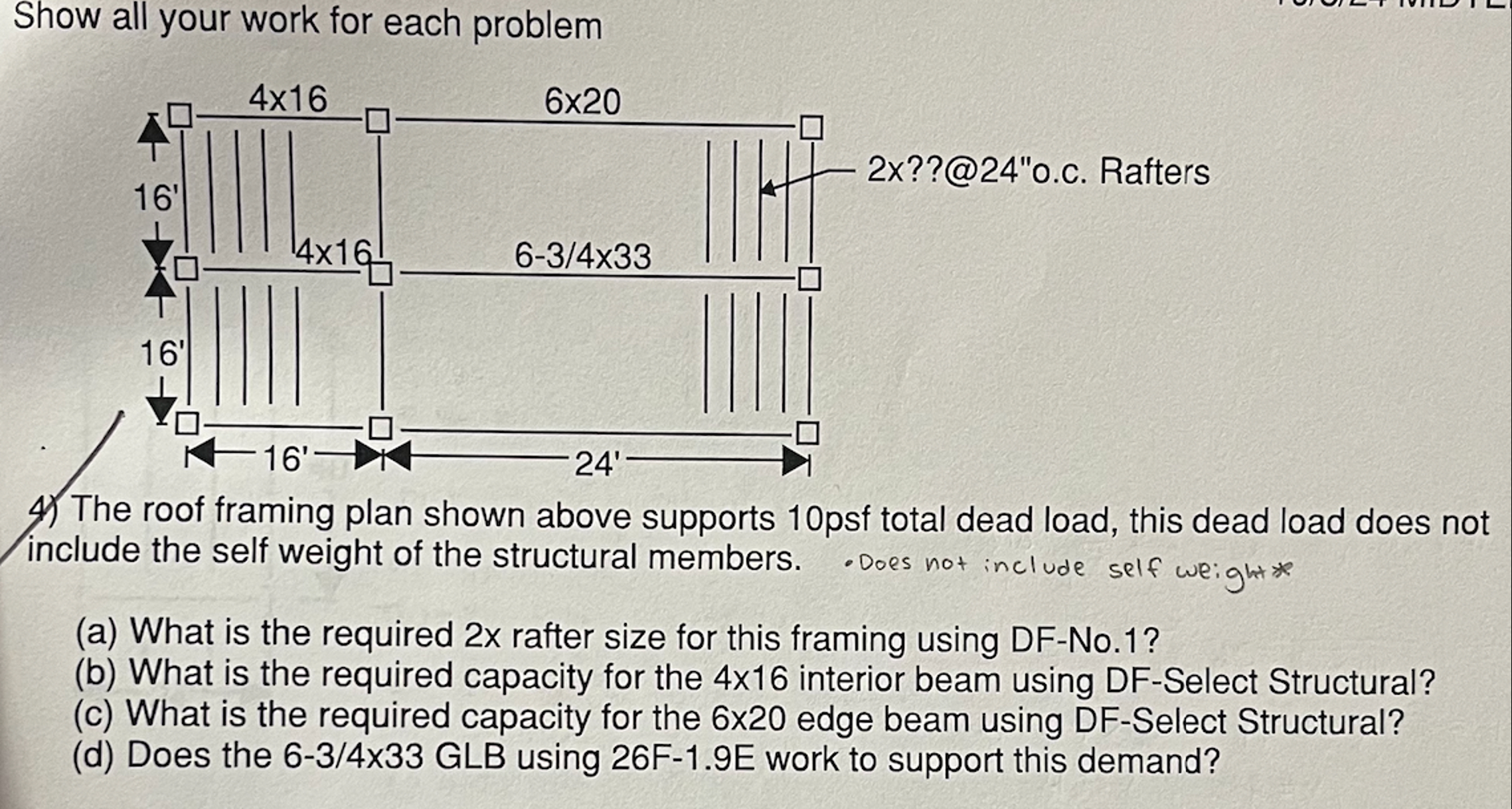

4) The roof framing plan shown above supports 10psf total dead load, this dead load does not include the self weight of the structural members.
- Does not include self weight+
(a) What is the required 2 x rafter size for this framing using DF-No.1?
(b) What is the required capacity for the 4x6 interior beam using DF-Select Structural?
(c) What is the required capacity for the 6x20 edge beam using DF-Select Structural?
(d) Does the 6-3/4 x33 GLB using 26F-1.9E work to support this demand?
Can you show work for each problem please? 4 )
